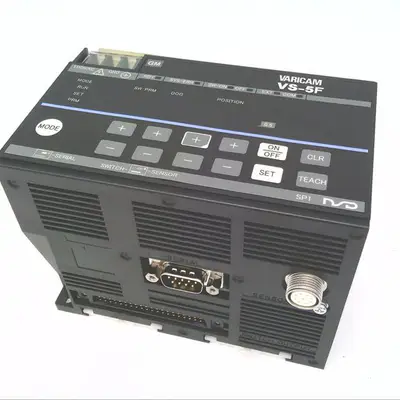

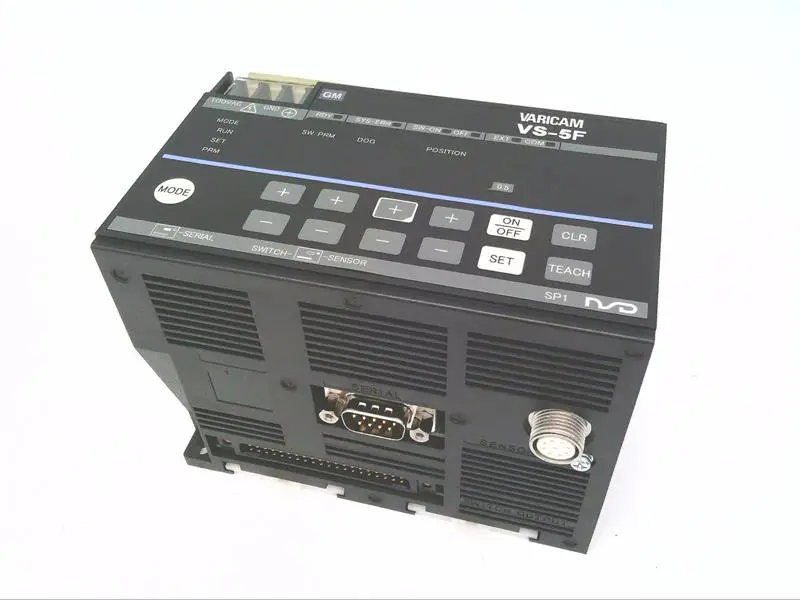

NSD VS 5F VARICAM Output Cam Switch Controller

SPECIFICATION3. SPECIFICATIONS3-2. ABSOCODER Sensor Specification Items Sensor modelSpecifications VRE-P028VRE-P062Total number of turns1Mass Linearity error Moment of inertia GD2 /4(J) Starting torque Permissibleloadshaft Radial ThrustPermissible mechanical speed Bearing life0.25 kg1.3 kg1.5°Max.1°Max.9.3×10-8 kg･m2 (9.5×10-7 kgf･cm･s2)6.4×10-6 kg･m2 (6.5×10-5 kgf･cm･s2)1.5×10-3 N･m or less (0.015 kgf･cm or less)4.9×10-2 N･m or less (0.5 kgf･cm or less)15 N (1.5 kgf)98 N (10 kgf)9.8 N (1.0 kgf)49 N (5 kgf)6000 r/min3600 r/min8×104 h (at 6000 r/min)5.5×104 h (at3600 r/min)OperatingAmbient temperature-20 to +60℃Storage-30 to +90℃ 2.0 x 102 m/s2 (20G) 2000Hz, up/down 4h, forward/back 2h, conforms to JIS D 1601 standardVibration resistance4.9 x 103 m/s2 (500G) 0.5 ms, up/down/forward/back x 3 times each, conforms to JIS C 5026 standardShock resistanceIP40, conforms to JEM 1030 standardProtection rating100m (3P-S)Standard cableMax. sensor cable lengthIP52f, conforms to JEM 1030 standardRobituc cable100m (3P-RBT)Interconnecting sensor cable2m3-3. Sensor Cable Specification ItemsSpecificationsModel code3P-SCable typeStandard cable3P-RBT Robotic cableDiameter Ambient temperature Insulatorφ8 Operating Storage-5 to +60°C -5 to +60°C Irradiated, formed polyethyleneSheath Color of sheath Advantage-10 to +60°CETFE plasticVinyl chloride mixture GrayBlack－Usable with moving machine menber thanks to excellent flexibility18
