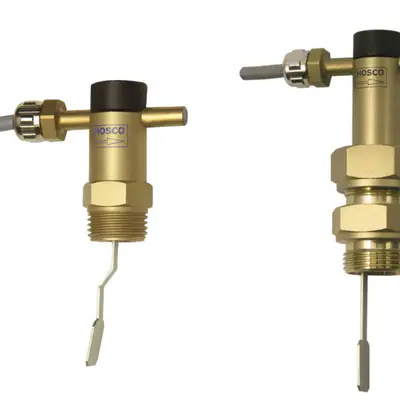

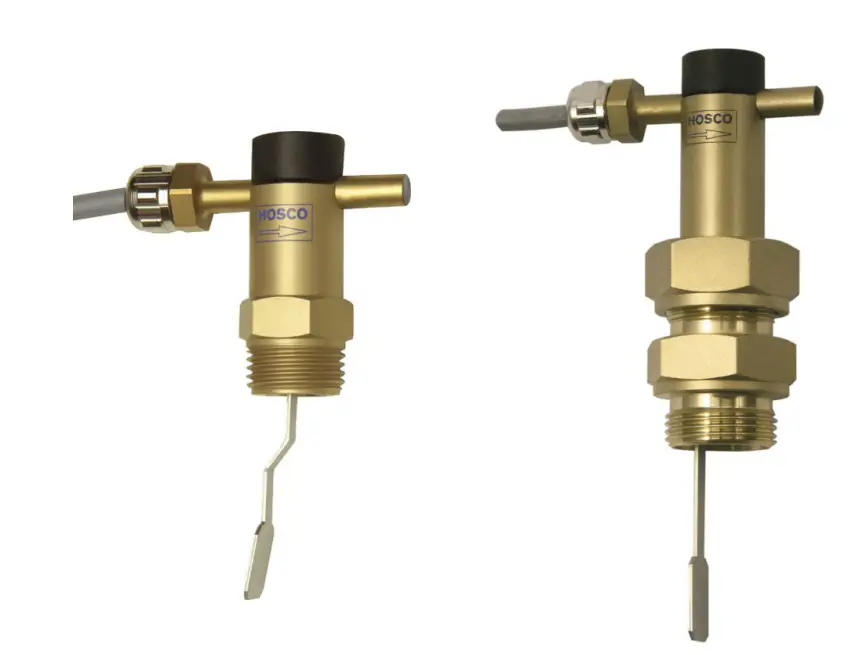

Senseca UR1-032HM-19 Flow Switch

Flow SwitchFlow switch UR1-...HWiringWiring 0.225 normally opened12brown blue (white)UR1-015HMUR1-032HM● Highly reproducible ● Low pressure loss ● Hermetic separation between electricaland hydraulic component ● Stress-fixing of the switching unit by means ofplastic headSwitching voltage Switching current Switch performance Cable length Ingressprotection Protection class Materials medium-contact230 V AC 1A 50 VANon-mediumcontact materials WeightPOMInstallation locationor 'normally closed'12brown blue (white)1.5 mIP 65 (1PE connection) Brass construction:CW614N , 1.4301, 1.4571, 1.4310, Hard ferrite, NBRStainless steel construction: 1.4305, 1.4571, 1.4301, 1.4310, Hard ferrite, VitonUR1-015HM / HK: 0.18 kg UR1-032HM / HK: 0.38 kg Standard: horizontal inwards flow; switchingunit not recommended underneath; other installation positions are possible; the installation position affects the switching point andrange.Characteristics The devices function via the principle of a spring-supported paddle,and the magnetic triggering of a reed switch.Ranges The adjustment range is suitable for horizontally decreasing flows.Measured in DIN 2448 tube with normal wall thickness.Technical data Switch Nominal width Process connection Switching range Qmax.Hysteresis Tolerance Pressure resistance Medium temperature Ambient temperatureMediaReed switchDN 32..80 brass / stainless steel Screw-in thread G 11/4..G 11/2 or G2“..G3“23..118 l/min For details see table "Ranges" up to 600 l/min Depending on the switching value, minimum±0.7 l/min ±15 % of full scale valuePN 25 barTypesDNUR1-015HMDN 32DN 40DN 50DN 65DN 80DN 32DN 40DN 50DN 65DN 80UR1-032HMUR1-015HK UR1-032HKAdjustment range l/min H2O 23 - 30 33 - 44 38 - 48 60 - 84 81 - 118 23 - 3033 - 44 38 - 48 60 - 84 81 - 118Qmax.recommended 100 150 200 400 600 100 150 200 400 600-20..+110 °C -20..+70 °C Water, oils (gases and aggressive media available on request)dsh_fam_ur1-h_en_vs01 V1.01-011
