Senseca TW500-3-1 Isolating Signal Converter

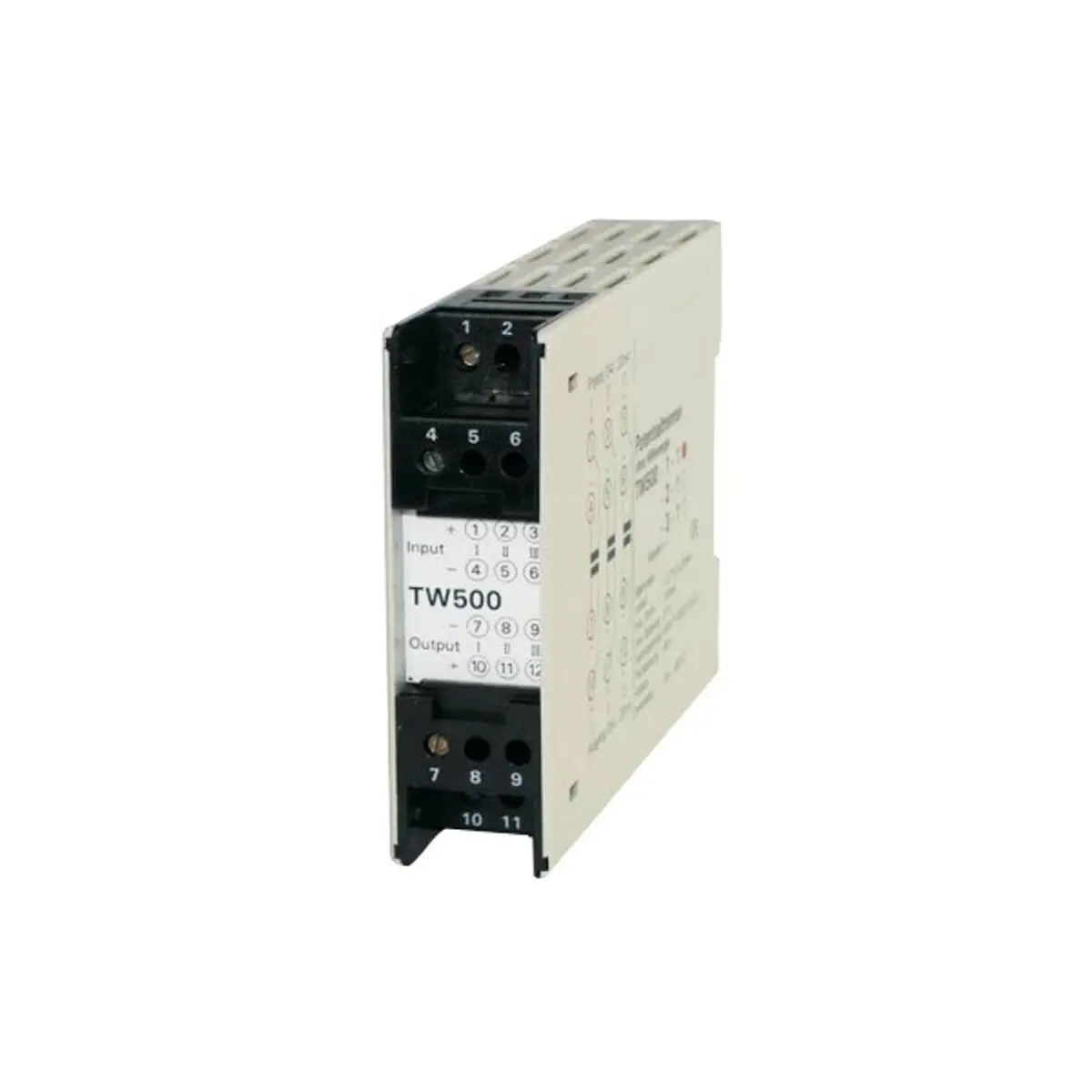

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformationIsolating Signal Converter TW500DimensionsLoop powered 0(4)..20 mACharacteristicsDIN rail mounting TS35Loop powered signal isolator TW 500 are highly compact devices to isolate DC-current signals 0(4)..20 mA without power supply. Up to3 channels are deliverable in one 22.5 mm DIN rail housing.Connection diagramTechnical data Input Current Max. current Max. voltage Voltage drop Test voltageRated voltage Operating temperature CE-conformity Output Current Max. currentBurden Rise time (T90) Accuracy Burden error Temperature coefficient RippleCase Weight Connection Protection class::::::0(4)..20 mA DC 100 mA 27 V DC < 2.7 V (I ≤ 20 mA) 4 kV DC input / output630 V acc. to VDE 0110 group 2: -20..+60 °C : EN 61326-1:2013EN 60664-1:2007 ::::::0(4)..20 mA max. input current < 1200 Ω (I ≤ 20 mA) < 30 ms < 0.1 % < 0.0008 %/Ω: < 0.001 %/°C : < 0.2 % : standard case polycarbonate 8020 UL94V-1 acc. to DIN EN 60715:2001-09, DIN rail TS35: approx. 140 g : screw terminals, max. 2.5 mm² : case IP30, terminals IP20, acc. to BGV A3pi-ma-TW500_E V1.02-00Note:Not used outputs must be shorted by a link.Ordering code 1.TW500 -1. Model 1 2 3-11-channel 2-channels 3-channels1
