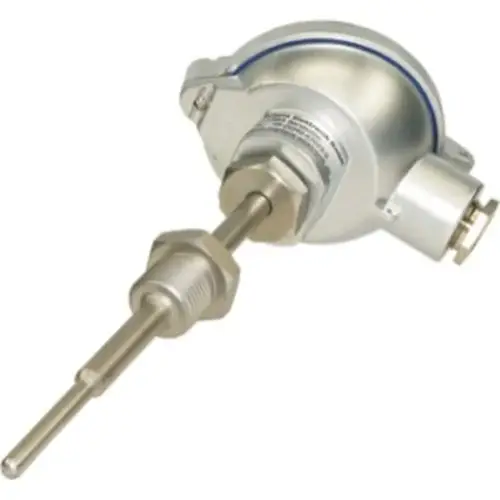

Senseca TR293-00-2-9/3-600-KV ½B-BSZ-600°C Safety Sensor

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comSafety RTD Sensor TR293Characteristics ● Fast response sensor for measurement in exhaust gas andair ● Certified as Sensor for Safety Temperature Limiters STL50 for gaseous media acc. to SIL 2 (DIN EN 61508) and DIN EN14597 (substitute DIN 3440) ● Ex certified to ATEX Ex-ia ● Sensor with 2 x Pt100 class A, 3-wire● Max. operating temperature -100..+600 °C ● Process pressure 25 bar ● Protection tube D = 9/3 mm, stainless steel 1.4571● Process connection clamp gland G ½ B ● Terminal head BSZ (Aluminum) IP65 with snap-lidTemperature equalizationConnection diagramOrdering code 1.1.2.3.4.5.The 63.2 % step-response time of temperature variation at the probe tip will be:Medium T63.2% Exhaust typical 20 s Air typical 22 sDimensions2.-6.7.8.3.-4.-5.-6.-7.-8.-Type TR293 Variation 00 standard Ex Ex certified acc. to ATEX Ex-ia IIC T6Measuring elements 2 2 elements Pt100 class A, 3-wire Protection tube diameter9/3 9mm to 3mm reduced Installation length NL 100 100 mm 160 160 mm 250 250 mm400 400 mm 600 600 mm XX custom length Process connectionKV ½ B clamp gland, slide-able ½ “ Terminal head BSZ with snap-lid (Aluminum)Max. operating temperature 600°C(Custom variation on request)_pi-ma-TR293_E V2.01-001
