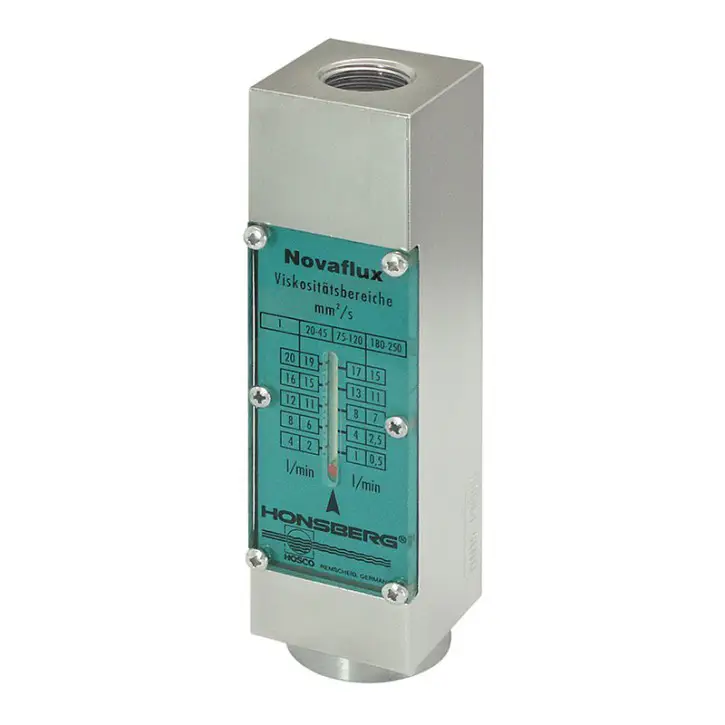

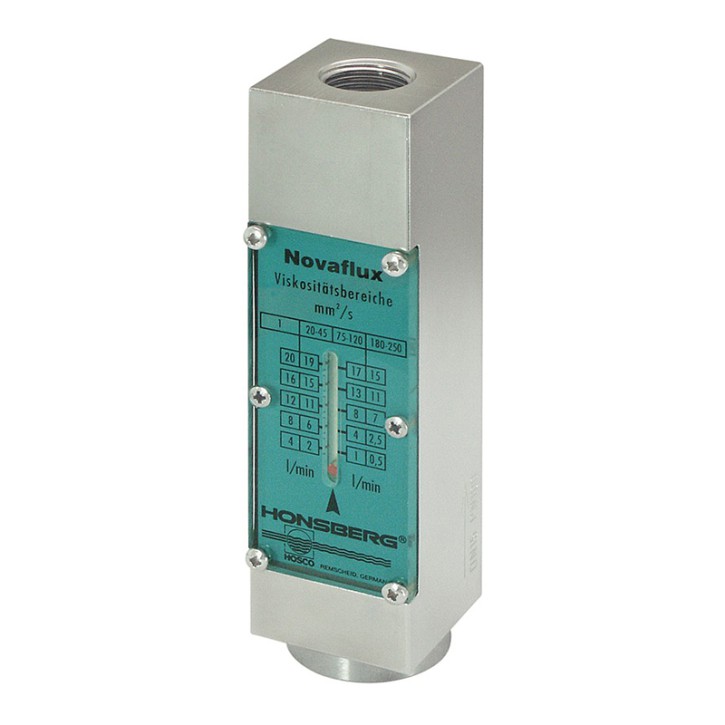

Senseca NJV-015GM010 Flow Indicator

Flow Indicator/ Switch NJ / NJVInstallation locationStandard: Vertical inwards flow from bottom to top. Further installation positions are possible; the installation position affects theswitching point and indication range.Ranges Details in the table correspond to horizontal inwards flow with increasing flow rate.Standard NJ G G 1/4 G 3/8Display range l/min H2O 2 - 104 - 20 2 - 10 4 - 20 10 - 40 G 3/4 2 - 10 4 - 20 10 - 40 G1 2 - 10 4 - 2010 - 40 20 - 80 Special ranges are available.G 1/2● Scale for various viscosities or viscosity stabilised from 30 to 200 mm²/s● Also for dark or dirty media ● Robust constructionCharacteristics Mechanical flow meter with spring-supported piston for fluid media.The measured value is transferred to a display ring via a magnetic coupling. Because of this separation, the display cannot becomedirty. Robust construction in brass.Technical data Switch Nominal width Process connection Display range Qmax.Tolerance Pressure resistance Media temperature Ambient temperature MediaWiring Switching voltage Switching current Switch performance Protection classProtection class Electrical connection Materials medium-contact Non-mediumcontact materialsWeightoptional reed switchDN 8..25 female thread G 1/4..G 1 (further process connections available onrequest) 2..80 l/min for details see table "Ranges" to 80 l/min ±8 % of the full scale value, minimum 1 l/minPN 100 -20..+100 °C -20..+70 °C water (NJ only), oils (aggressive media available on request)for options, see "Switch contact options"CW614N nickelled, CW614N, 1.4310, hard ferrite, NBR Acrylic HSQmax.recommended 10 20 406080Types NJ-008G.010 NJ-010G.010 NJ-010G.020 NJ-015G.010 NJ-015G.020 NJ-015G.040NJ-020G.010 NJ-020G.020 NJ-020G.040 NJ-025G.010 NJ-025G.020 NJ-025G.040 NJ-025G.080Multi-scale display ranges 1 2 - 10 4 - 20 10 - 40 20 - 8020-45 0.6 - 8 2.0 - 19 7.0 - 38 19.0 - 7375-120 0.2 - 7 1.0 - 17 6.0 - 37 17.0 - 68180-250 0.1 - 4 0.5 - 15 4.0 - 36 13.0 - 63mm2/s l/minViscosity stabilised NJV Viscosity stabilised devices are measured in the factory with oilISO VG100 with 40°C.G Display range Qmax.Types l/min oil recommended 30..200 mm²/s G 1/4 2 - 10 10 NJV-008G.010 G 3/820 NJV-010G.010 4 - 20 NJV-010G.020 G 1/2 2 - 10 40 NJV-015G.010 4 - 20 NJV-015G.02010 - 40 NJV-015G.040 G 3/4 2 - 10 60 NJV-020G.010 4 - 20 NJV-020G.020 10 - 40NJV-020G.040 10 - 60 NJV-020G.080 G1 2 - 10 80 NJV-025G.010 4 - 20 NJV-025G.02010 - 40 NJV-025G.040 10 - 60 NJV-025G.060 Special ranges are available.see table "Dimensions and weights"pi-ho_fki-nj_e V1.03-021
