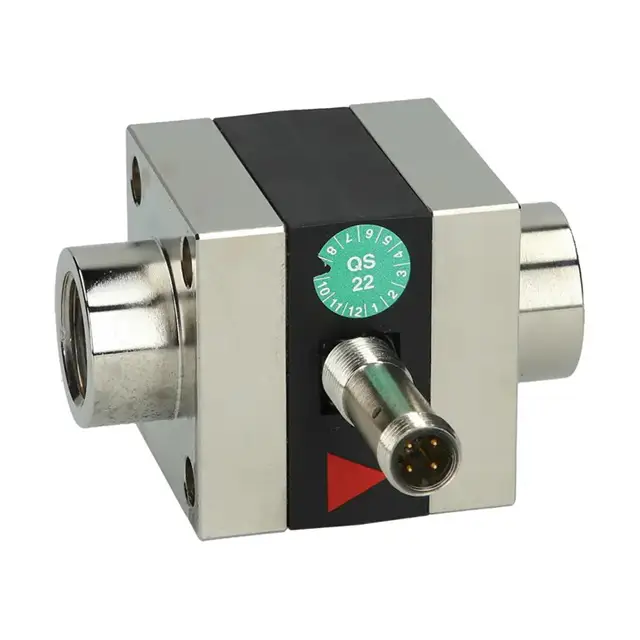

Senseca LABO-XF-I015GMM025VRNS Flow Transmitter

Flow Transmitter LABO-XF-I / U / F / Cmedia contact parts guarantees reliable operation and a low tendency to contamination.There are flanged connection pieces on the inlet and outlet; these are available in various nominal widths and materials. By removingthe four bolts of the flange connection, it is simple to remove the measurement unit for servicing, while the connections remain in thepipework.The LABO-XF electronics make various output signals available:● ● ● ●Analog signal 0/4..20 mA (LABO-XF-I) Analog signal 0/2..10 V (LABO-XF-U)Frequency signal (LABO-XF-F) or Value signal pulse / x Litres (LABO-XF-C)A model with switching output is also available.If desired, the range end value can be set to the currently existing flow using "teaching".Technical data ● ● ● ● ● ●Very short response time High overload protection Metering range 1:100 Low pressure lossCompact design 0...10 V, 4...20 mA, frequency/pulse output, completely configurableSensor nominal width Process connectionMetering rangesCharacteristics A thin elastic diaphragm made of stainless steel, which covers theentire flow cross-section, is deflected by the flowing fluid, and thereby pushes against an arched end stop.Measurement accuracyEnd stop FlowPressure loss Pressure resistanceDiaphragm Magnet There is a plastic-coated magnet on the diaphragm. When there isa deflection, its magnetic field changes, and this is detected by a sensor outside the area of flow.Media temperature Ambient temperature Storage temperature Materials medium-contactpi-ho_fdb-labo-xf-iufc_e_V1.09-02-20...+80 °C Body:Connections:Flexible diaphragm made of stainless steel, with plastic-coated magnet.Because the diaphragm only bends, and functions without a bearing, there is almost no frictional effect. The movementtherefore occurs practically free of hysteresis, and the measurements have very good reproducibility. The diaphragm's lowbulk results in a short response time. The almost complete covering of the flow cross-section in the neutral position produces very highstart-up sensitivity. As soon as the slightest flow exists, the diaphragm is of necessity deflected. The evaluation of the entireflow cross-section means that there are no problems when routing pipes. Run-in and run-out sections are not necessary. The shapedend stop and the elastic properties of the diaphragm mean that even severe water hammer causes no damage. The low number ofdynamic diaphragmDN 8...25 female thread G 1/4...G 1, optionally male thread or hose nozzle, NPTthreads and custom specific connectors on request 1...100 l/min (water) for standard ranges, see table "Ranges",minimum value range 0.4...6 l/min optionally available Standard ranges:±3 % of the measured value, minimum 0.25 l/min Minimum value range:±3 % of the measured value, minimum 0.1 l/min max. 0.5 bar Plastic construction:PN 16 Full metal construction:PN 100 0...+70 °C with high temperature option 0...+110 °C 0...+70 °CMaterials, nonmedium-contactSupply voltageSeals:Diaphragm:Magnet holder:Back-up ring:Adhesive:Sensor tube:Adhesive:Flange bolts:PPS, CW614N nickelled or stainless steel 1.4404 POM, CW614N nickelled orstainless steel 1.4404 FKM stainless steel 1.4031k PPS PVDF epoxy resin CW614N nickelledepoxy resin stainless steel full metal construction:steel10...30 V DC or 15...30 V DC (for voltage output 10 V)1
