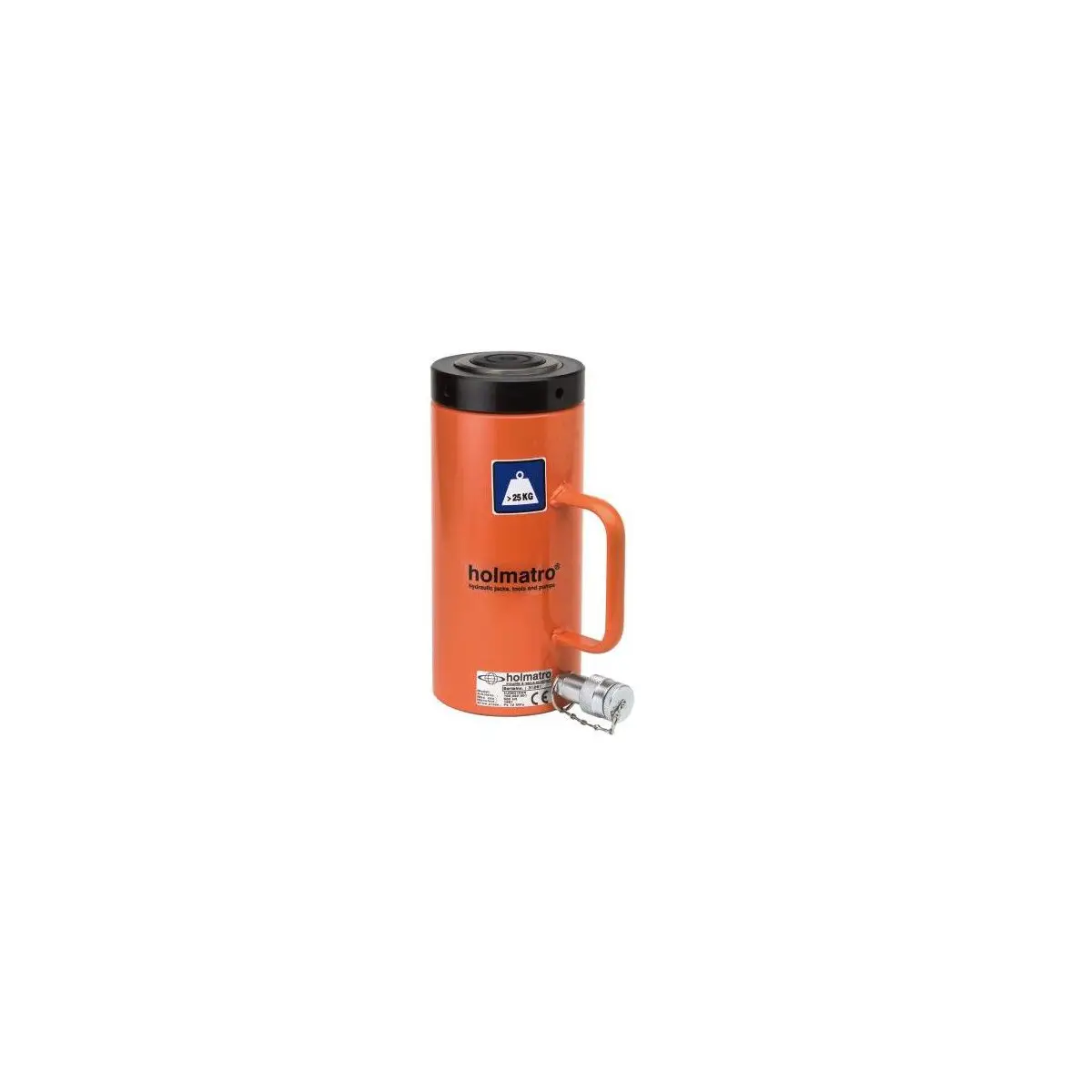

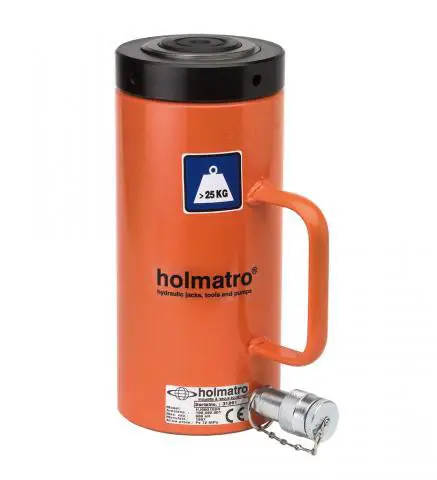

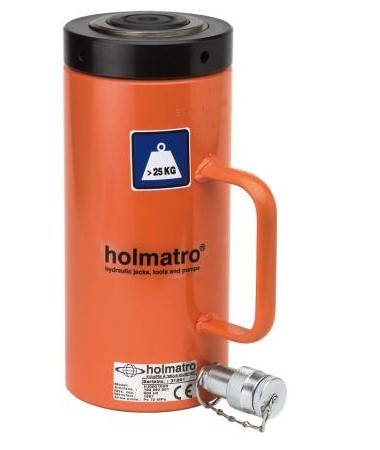

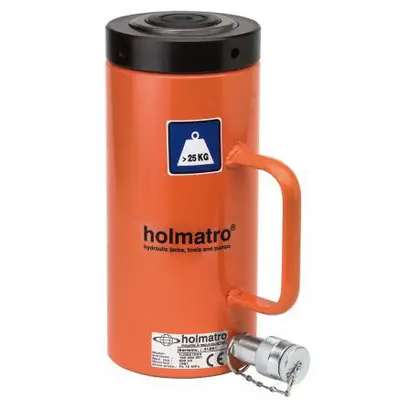

Holmatro G Locknut 50 HJ 15 SN Cylinder

LOCKNUT CYLINDER HJ 50 G 15 SNLOCKNUT CYLINDER HJ 50 G 15 SNSingle acting, gravity return lock nut cylinder with Lock nut on plunger for mechanical load locking. Standard with High Flow female coupler A 118 and flat saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.082.001Basic specificationsmodelHJ 50 G 15 SNmax. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage50 t110231 lbstroke150 mm5.9 inclosed height307 mm12.1 incapacity510.3 kN / 52 t / 510.3 / 52 (kN/t)114720 lbfeffective pressure area70.9 cm211 sq. in.General specificationsrequired oil content (effective)1065 cc36 ozacting typesinglereturn typegravitymaterialsteelcylinder typelock nutconnectionA 118Dimensions, weight and temperatureweight, ready for use34 kg75 lbTechnical drawing dimensionsdimension A307 mm12.1 indimension B135 mm5.3 indimension C95 mm3.7 indimension D70 mm2.8 indimension E25 mm1 indimension F272 mm10.7 inI typeI-2
