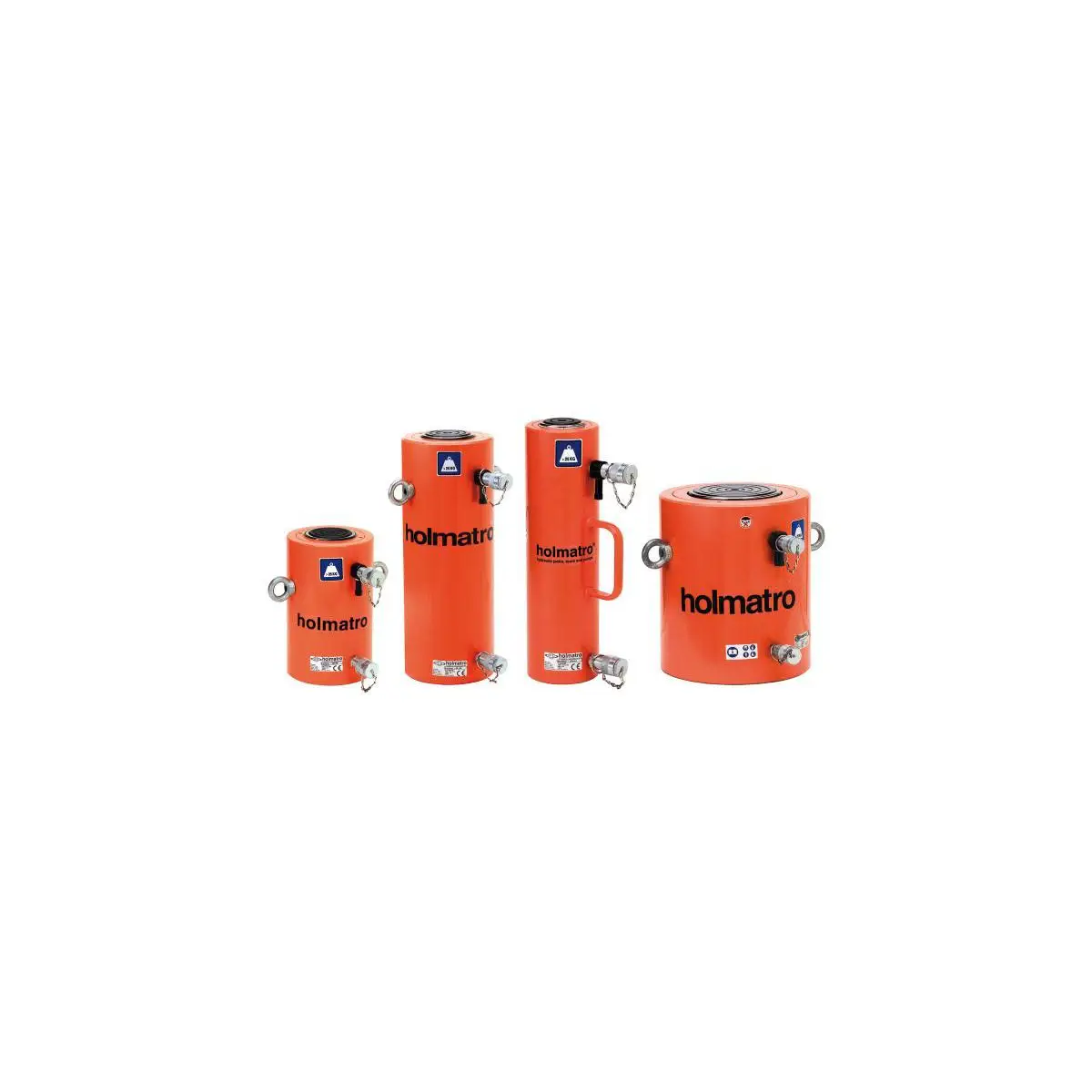

Holmatro HJ 400 H 15 Hydraulic Cylinder

CYLINDER HJ 400 H 15, SADDLE S 500 FNCYLINDER HJ 400 H 15Double acting, hydraulic return cylinder. Standard with High Flow female coupler A 118 on inlet port, High Flow female coupler with pressure relief valve A 418 on outlet port and flat saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.091Basic specificationsmodelHJ 400 H 15max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage400 t881849 lbstroke150 mm5.9 inclosed height402 mm15.8 incapacity3750 kN / 382.4 t / 3750 / 382.4 (kN/t)843034 lbfeffective pressure area (press)530.9 cm282.3 sq. in.effective pressure area (retract)216.7 cm233.6 sq. in.General specificationsrequired oil content (press)7950 cc268.8 ozrequired oil content (retract)3238 cc109.5 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typehigh tonnageconnectionA 118Dimensions, weight and temperatureweight, ready for use325 kg716.5 lbTechnical drawing dimensionsdimension A402 mm15.8 indimension B358 mm14.1 indimension C200 mm7.9 indimension D170 mm2.8 indimension D285 mm3.3 indimension E76 mm3 indimension F395 mm15.6 inI typeI-1dimension P80 mm3.1 in
