Holmatro HHJ 15 S Plunger Hollow 20 Cylinder

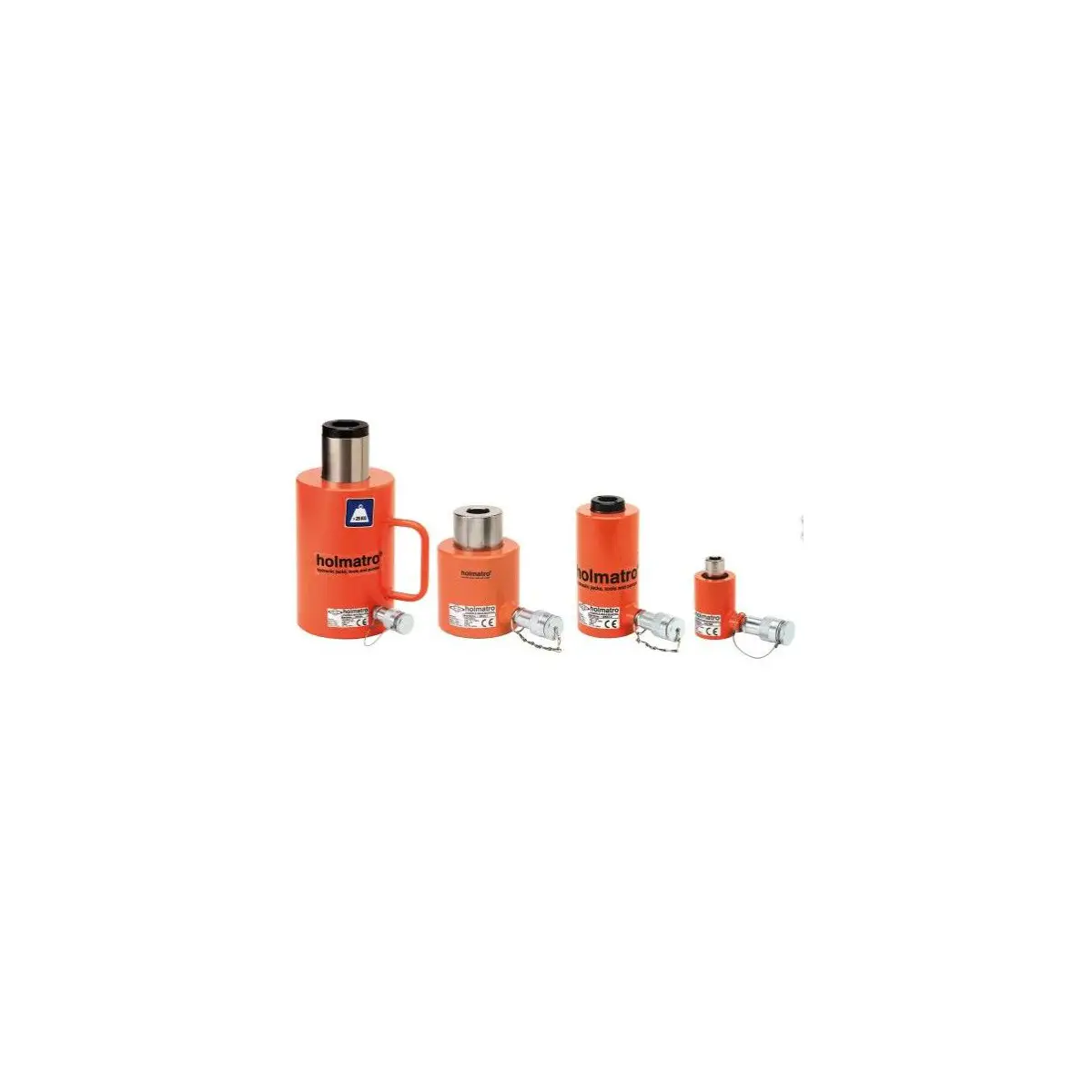

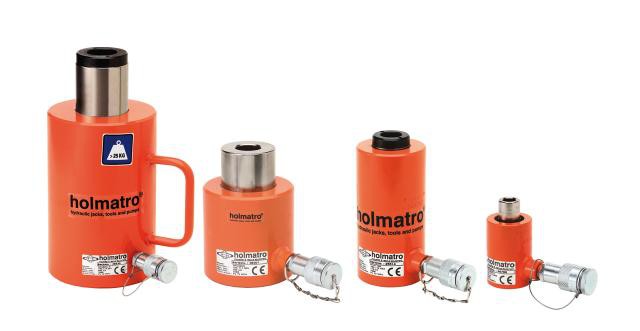

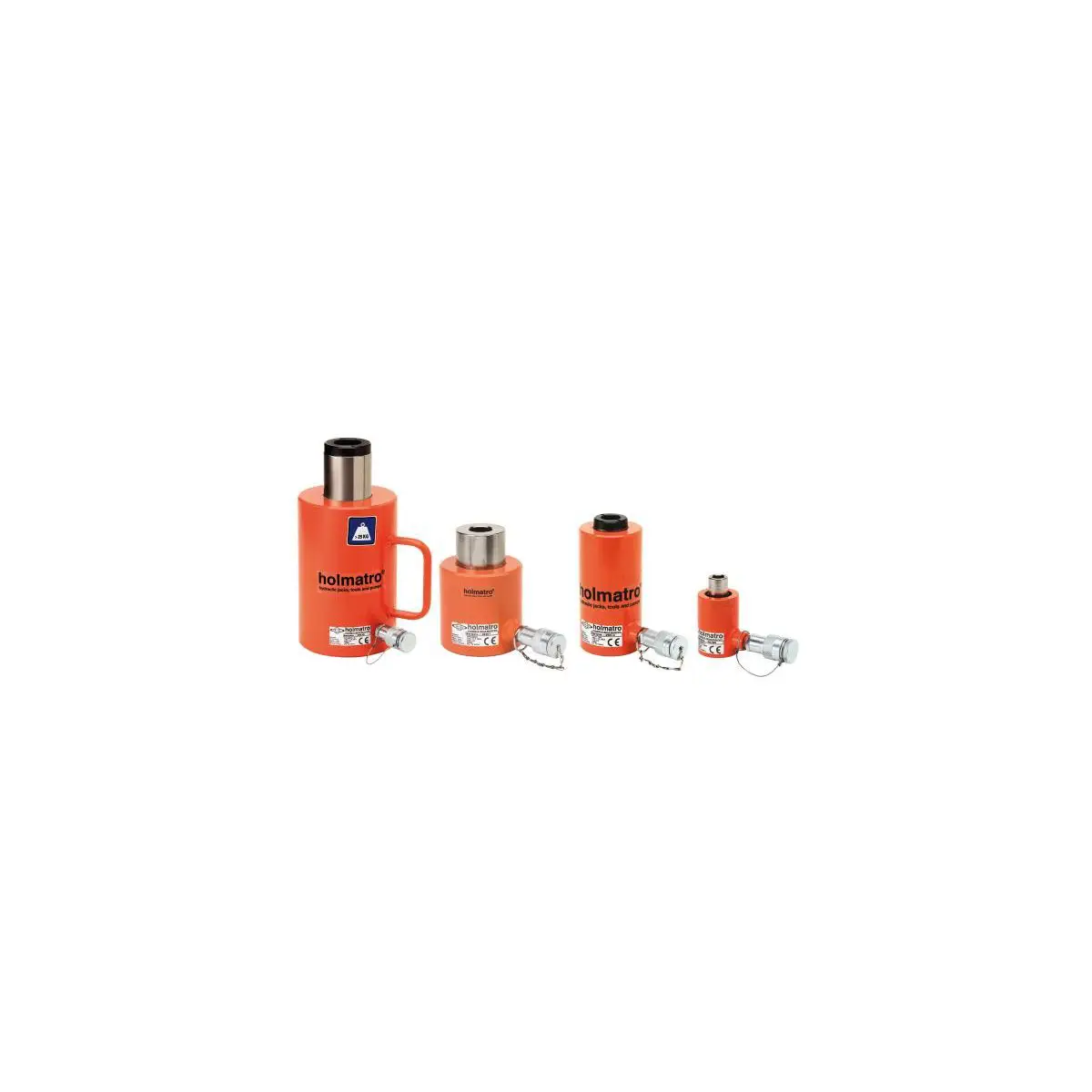

HOLLOW PLUNGER CYLINDER HHJ 20 S 15Single acting, spring return hollow plunger cylinder.Standard supplied with:• High Flow female coupler A 118• Hollow saddle, with the exception of the HHJ 5 S 2.5, HHJ 12 S 5 and HHJ 12 S 15 cylindersDetailsArticlenumber100.112.030Basic specificationsmodelHHJ 20 S 15max. working pressure720 / 72 (bar/Mpa)10443 psispotlightyesPerformancetonnage20 t44092 lbstroke150 mm5.9 inclosed height389 mm15.3 incapacity223.9 kN / 22.8 t / 223.9 / 22.8 (kN/t)50335 lbfeffective pressure area31.1 cm24.8 sq. in.General specificationsrequired oil content (effective)467 cc15.8 ozacting typesinglereturn typespringmaterialsteelcylinder typehollow plungerconnectionA 118Dimensions, weight and temperatureweight, ready for use18 kg39.7 lbTechnical drawing dimensionsdimension A389 mm15.3 indimension B100 mm3.9 indimension C50 mm2 indimension D90 mm3.5 indimension E31 mm1.2 indimension F377 mm14.8 inI typeI-2dimension R27 mm1.1 indimension SM38x1,5 threadsize
