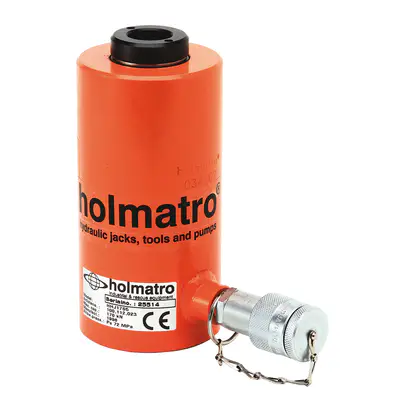

Holmatro HHJ 12 Hollow Plunger Set

Technical specification sheetHHJ 12 S 5 | Hollow Plunger Cylinder Specifications article number100.111.021short descriptionHollow Plunger CylindermodelHHJ 12 S 5max. working pressurebar/Mpa720 / 72tonnaget12strokemm50closed heightmm156capacitykN/t126.7 / 12.9effective pressure areacm²17.6required oil content (effective)cc88connectionA 118cylinder typehollow plungeracting typesinglereturn typespringmaterial weight, ready for usesteel kg6.3dimension Amm156dimension Bmm86dimension Cmm40dimension Dmm90dimension Emm27dimension Fmm156dimension Rmm21Technical drawing dimensionsStandard supplied with• High flow female coupler A118• Hollow saddle (with the exception of the HHJ5S2.5, HHJ12S5 and HHJ12S15)holmatro.com © Holmatro 2025-10-01 While the greatest care has been devoted to the content, it is possible that the information in this printed matter is incorrect or incomplete. Holmatro B.V. and its affiliated companies (hereafter: Holmatro) cannotbe held liable in any way for the consequences of activities undertaken on the basis of this printed matter. Values can vary within the manufacturer measurements. If you have any doubts about the correctness orcompleteness of the information, you shall contact Holmatro (T +31 (0)162-751480). Nothing from this printed matter can be copied and/or made public in any way without the explicit authorisation of Holmatro.
