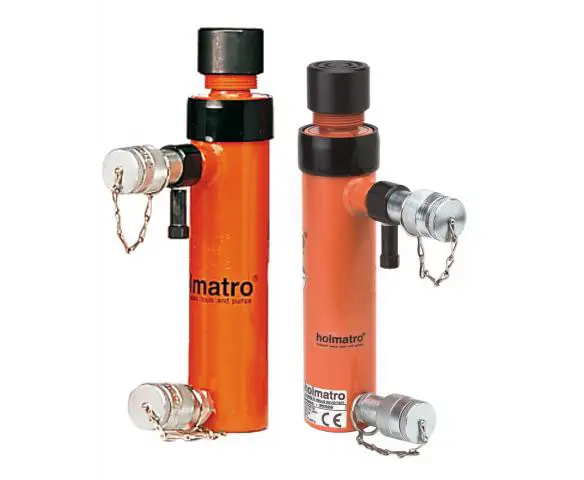

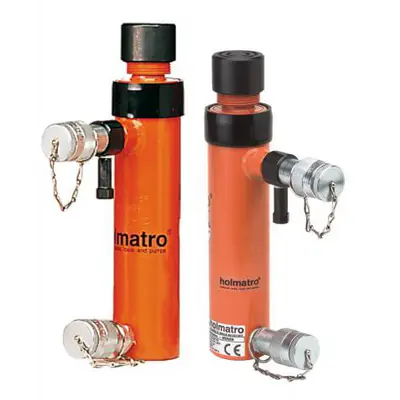

Holmatro 25 HCJ Constraction H 15 Cylinder

CYLINDER HCJ 25 H 15, SADDLE 24 DCONSTRUCTION CYLINDER HCJ 25 H 15Double acting, hydraulic return construction cylinder. Standard with High Flow female coupler A 118 on inlet port, High Flow female coupler with pressure relief valve A 418 on outlet port, bottom plug and screw-on saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.067Basic specificationsmodelHCJ 25 H 15max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage25 t55116 lbstroke150 mm5.9 inclosed height350 mm13.8 incapacity238.9 kN / 24.4 t / 238.9 / 24.4 (kN/t)53707 lbfeffective pressure area (press)33.2 cm25.1 sq. in.effective pressure area (retract)17.3 cm22.7 sq. in.General specificationsrequired oil content (press)498 cc16.8 ozrequired oil content (retract)260 cc8.8 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typeconstructionconnectionA 118Dimensions, weight and temperatureweight, ready for use12.7 kg28 lbTechnical drawing dimensionsdimension A350 mm13.8 indimension B85 mm3.3 indimension C45 mm1.8 indimension D170 mm2.8 indimension D285 mm3.3 indimension E56 mm2.2 indimension F297 mm11.7 indimension JM85 x 2 threadsizedimension K40 mm1.6 indimension L2Inch NPT threadsizedimension N27 mm1.1 indimension P60 mm2.4 indimension M2” NPT threadsize
