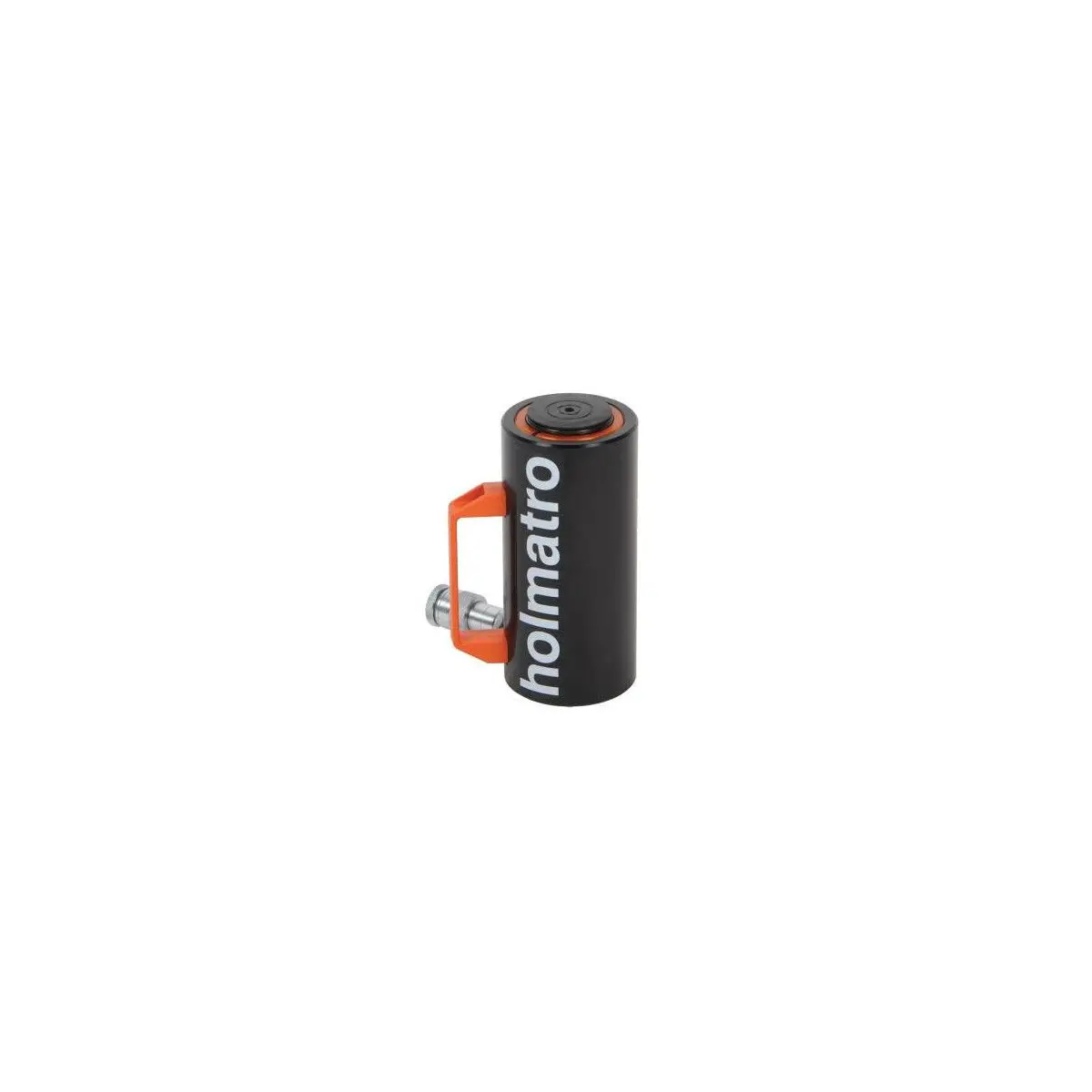

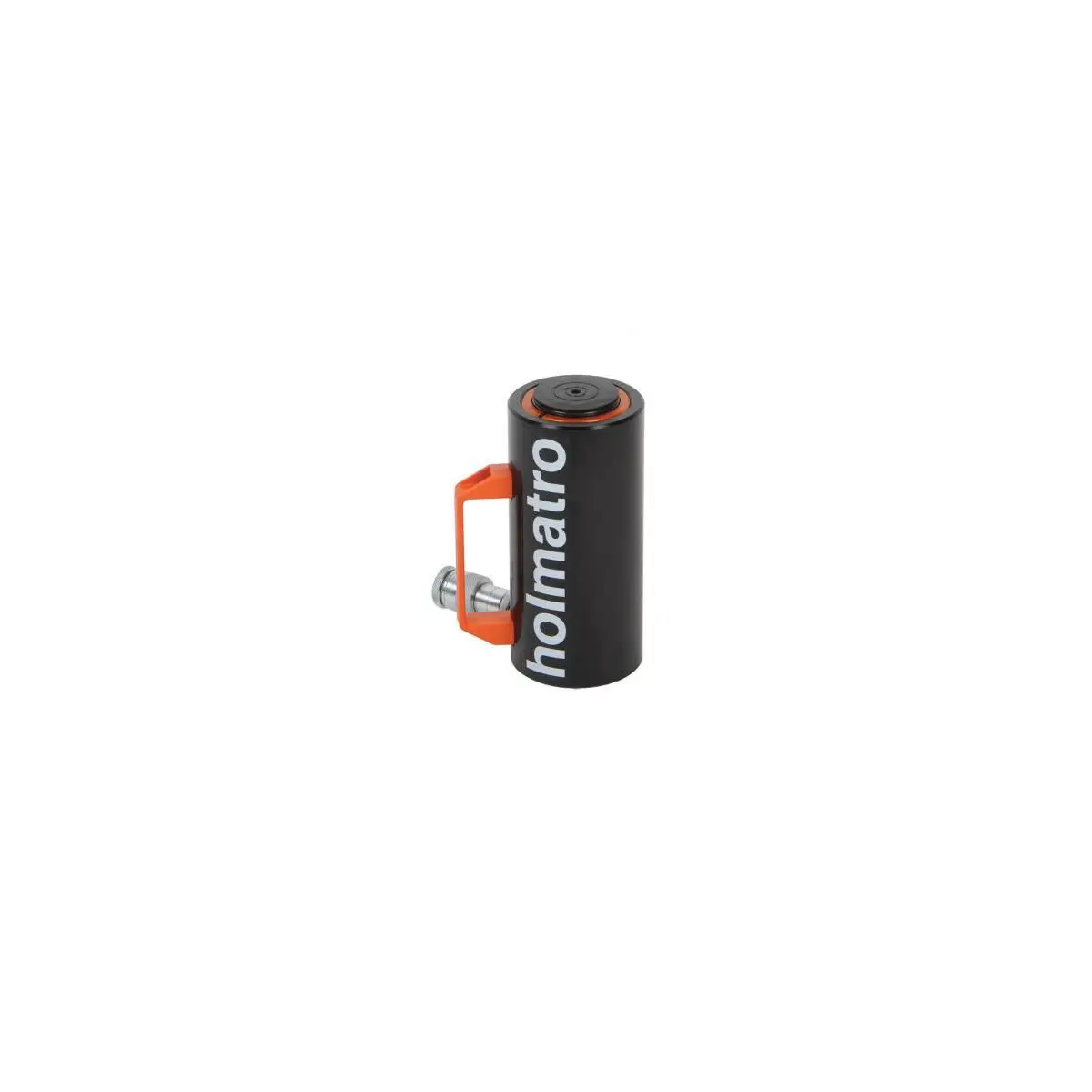

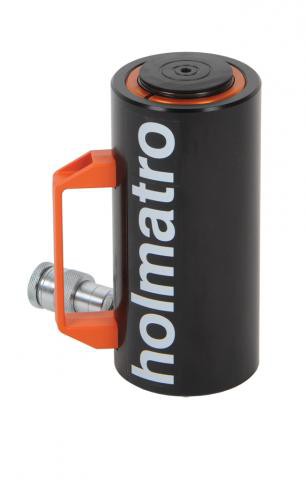

Holmatro 30 S Aluminium HAC 10 Cylinder

ALUMINIUM CYLINDER HAC 30 S 10Single-acting cylinder produced from 7075-T6 black anodised aluminium. Just as powerful as, though many times lighter than its steel equivalent. This makes it easier and safer for a single user to lift higher tonnages.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.112.268Basic specificationsmodelHAC 30 S 10max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage30 t66139 lbstroke100 mm3.9 inclosed height232 mm9.1 incapacity318.1 kN / 32.4 t / 318.1 / 32.4 (kN/t)71512 lbfeffective pressure area44.2 cm26.9 sq. in.General specificationsrequired oil content (effective)442 cc14.9 ozacting typesinglereturn typespringmaterialaluminiumcylinder typestandardconnectionA 118Dimensions, weight and temperatureweight, ready for use5.9 kg13 lbTechnical drawing dimensionsdimension A232 mm9.1 indimension B106 mm4.2 indimension C66 mm2.6 indimension D76 mm3 indimension E28 mm1.1 indimension F225 mm8.9 indimension G7 mm0.3 inI typeI-2dimension Q43 mm1.7 inangle A240 °NormsASMEB30.1
