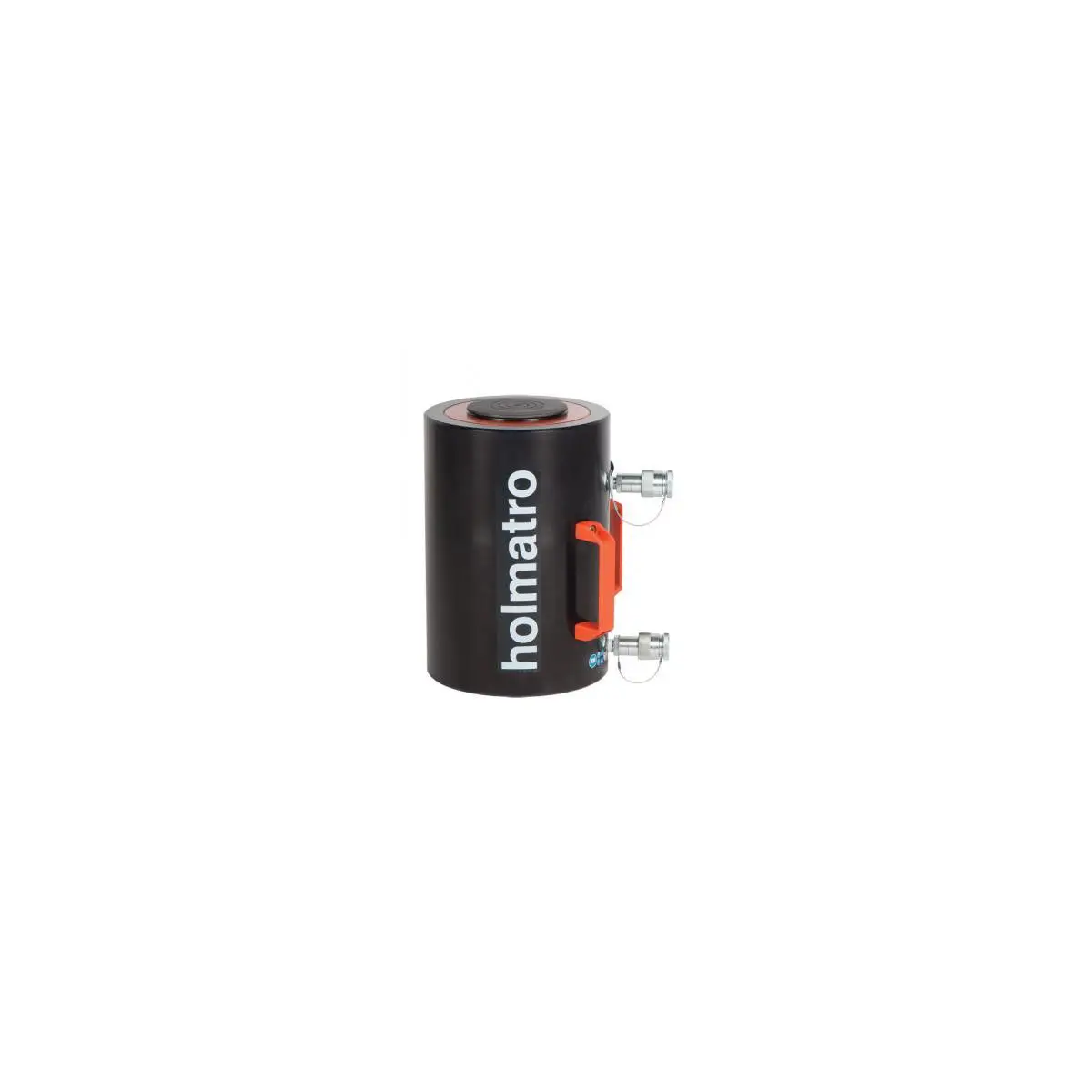

Holmatro 150 Aluminium HAC H 30 Cylinder

Aluminium CylinderALUMINIUM CYLINDER HAC 150 H 30Double-acting cylinder produced from 7075-T6 black anodised aluminium. Just as powerful as, though many times lighter than its steel equivalent. This makes it easier and safer for a single user to lift higher tonnages.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.064Basic specificationsmodelHAC 150 H 30max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage150 t330693 lbstroke300 mm11.8 inclosed height498 mm19.6 incapacity1539.5 kN / 157 t / 1539.5 / 157 (kN/t)346093 lbfeffective pressure area (press)213.8 cm233.1 sq. in.effective pressure area (retract)91.1 cm214.1 sq. in.General specificationsrequired oil content (press)6415 cc216.9 ozrequired oil content (retract)2733 cc92.4 ozacting typedoublereturn typehydraulicmaterialaluminiumcylinder typestandardconnectionA 118Dimensions, weight and temperatureweight, ready for use50.6 kg111.6 lbTechnical drawing dimensionsdimension A498 mm19.6 indimension B235 mm9.3 indimension C125 mm4.9 indimension D176 mm3 indimension D276 mm3 indimension E35 mm1.4 indimension F490 mm19.3 inI typeI-2dimension P72 mm2.8 inNormsASMEB30.1
