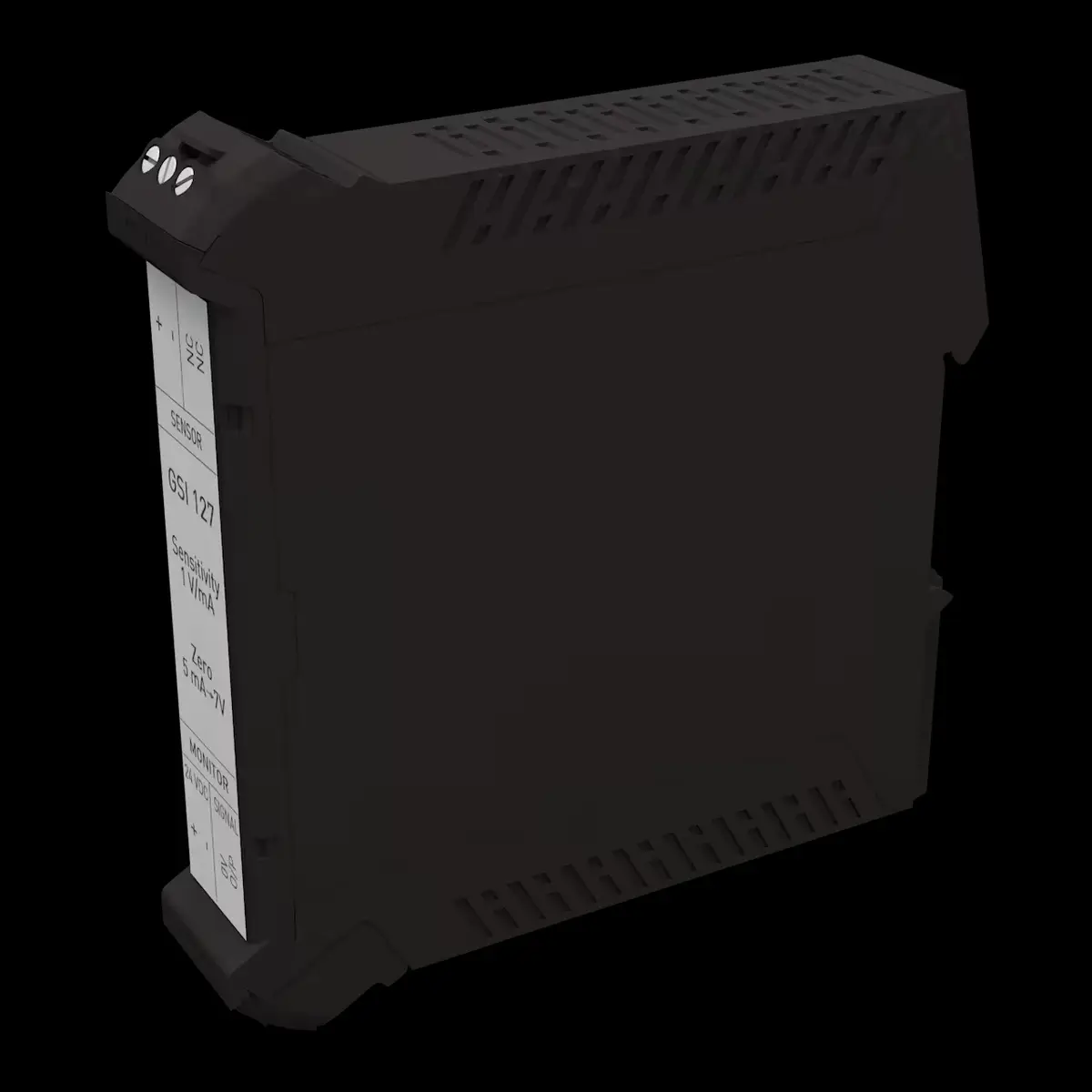

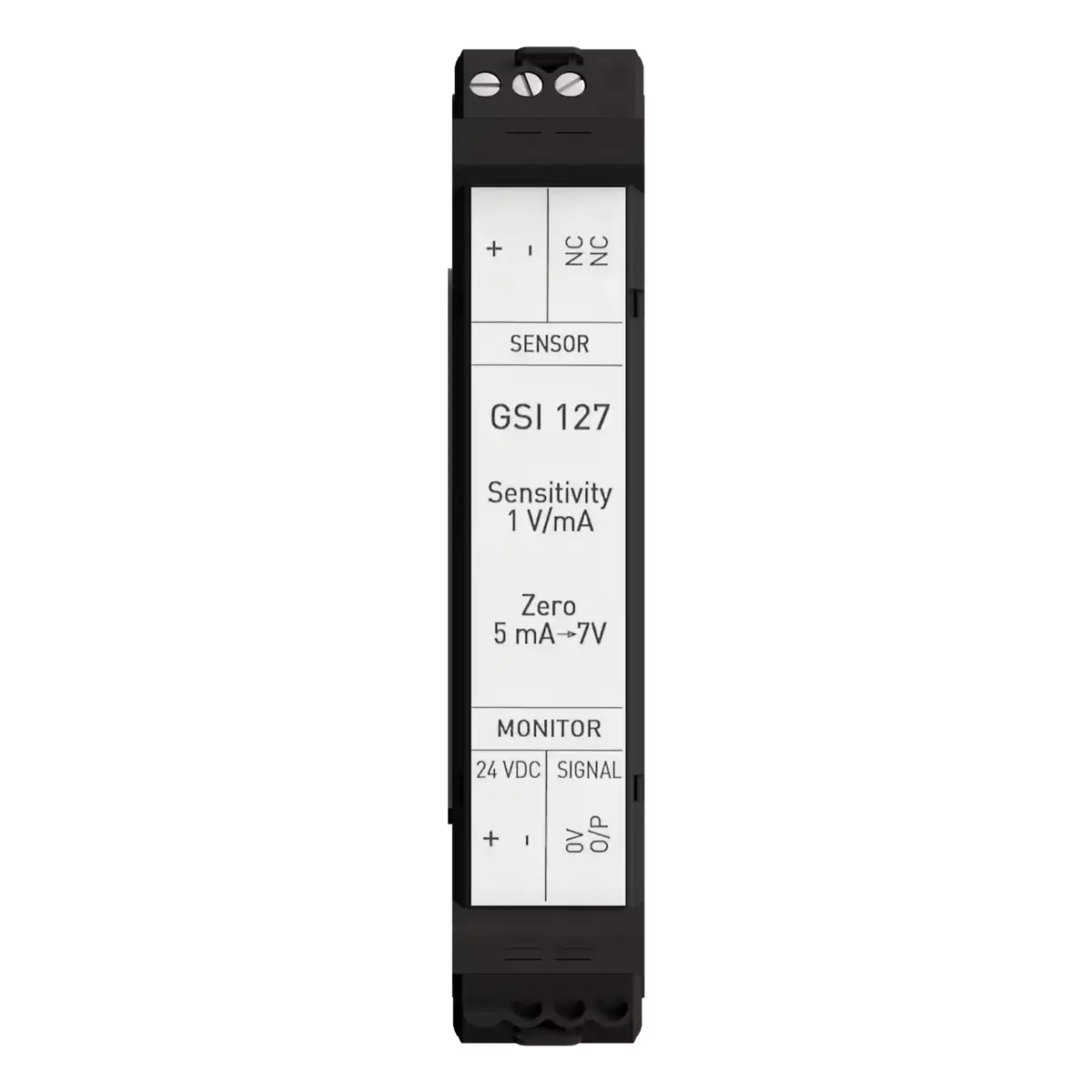

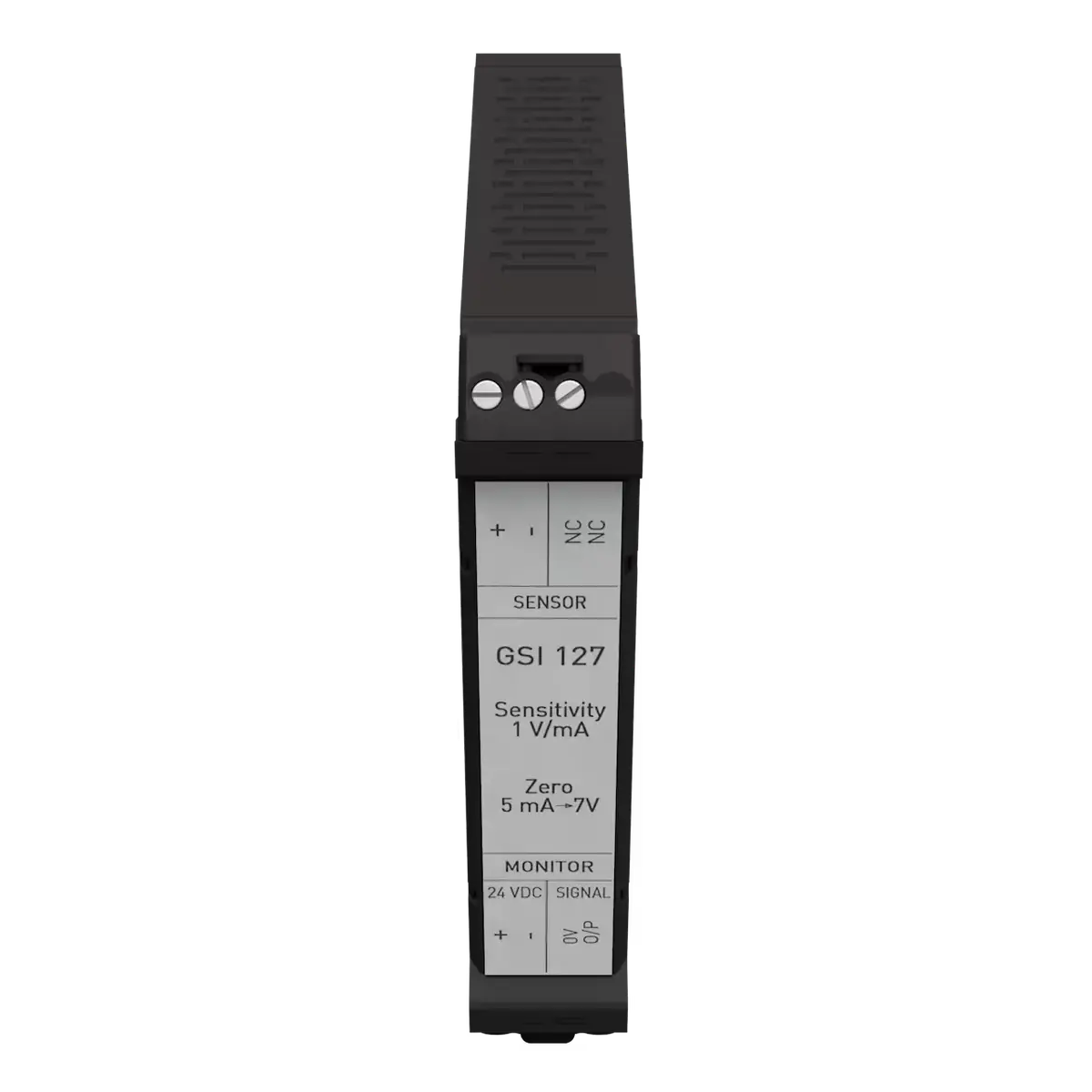

Meggitt Galvanic 244 127 000 01x A2 B03 GSI127 Separation Unit

SPECIFICATIONS (continued) Transfer characteristics Sensitivity• Ordering options B01 and B02• Ordering option B03• Ordering options B04 and B21• Ordering options B05 Output offset voltage (zero)• Ordering option B01 (5 mADC on transmission line)• Ordering option B02 (12 mADC on transmission line)• Ordering option B03 (17.5 mADC on transmission line)• Ordering options B04, B05 and B21 (10 VDC on transmission line) Bandwidth• Frequency band with a transfer inside ± 0.5 dB• Typical −3 dB cut-off frequency Linearity Galvanic separation voltage• Sensor side and monitor side• Power supply and output signal::::1 V/mA ±1% 3.2 V/mA ±1% 1 V/ V ±1% −1 V/ V ±1%: 7 VDC ± 200 mVDC : 7 VDC ± 200 mVDC : 8 VDC ± 200 mVDC : 10 VDC ± 200 mVDC: DC to 20 kHz : 30 kHz : < 0.2 % : 4 kVRMS : 50 VRMSConnectors Screw-terminal connector (top) : 4 contacts for sensor-side signalsScrew-terminal connector (bottom) : 4 contacts for monitor-side signals Electrical connections• IEC : 400 V / 0.2 to 2.5 mm2• UL : 300 V / 10 A / 26 to 12 AWG Clamping range : 3.31 mm2 (max.), rated connectionNote: The GSI127 features removal screw-terminal connectors that can unplugged from the main body of thehousing to simplify installation and mounting.Physical Mounting Electrical connections Housing• Material• ColourDimensions WeightDATA SHEET GSI127 galvanic separation unit 6/9: Suitable for TH 35 DIN rails (according to EN 50022 / IEC 60715).For example, TH 35-7.5 or TH 35-15.: Removable screw-terminal connectors (see Connectors on page 6) : Polyamide (PA 66 GF 30): Standard versions: Grey.Ex approved versions: Grey with the electrical connections to the sensor side indicated by blue.: See Mechanical drawings on page 7 : 140 g (0.31 lb) approx.Document reference DS 262-870 Version 11 – 12.05.2022
