Senseca GIA0420-VO-00-GE Plug-in Display

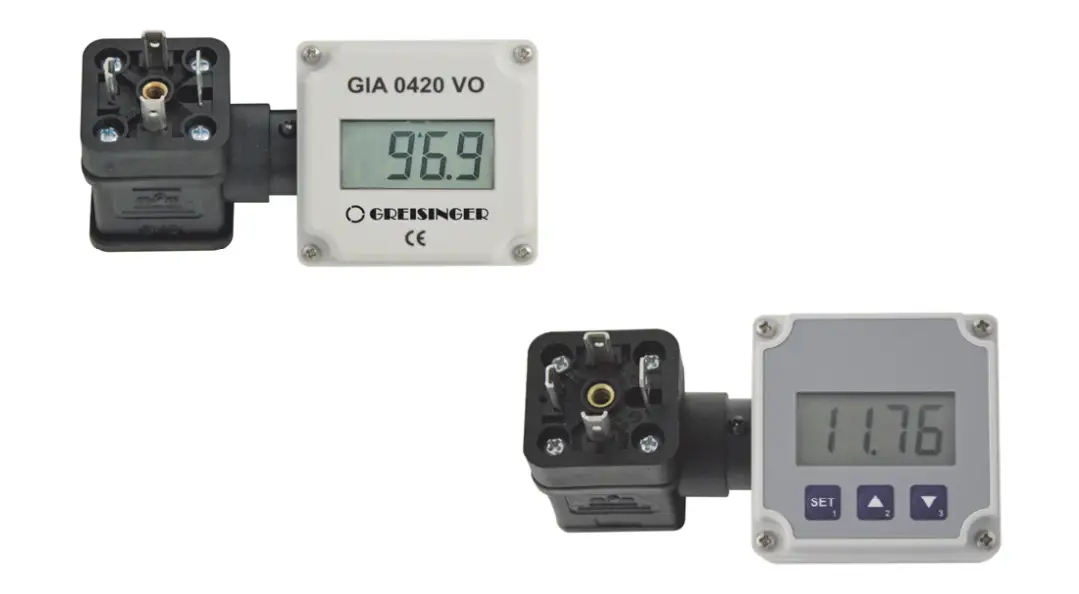

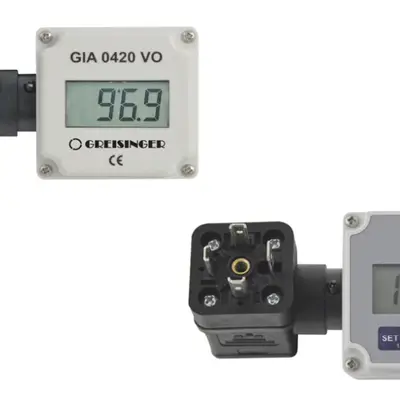

Plug-In DisplayGIA 0420 VO(T)Dimensions Housing: 48.5 x 48.5 x 35.5 mm (L x W x D) without elbow-type plugConnection diagramPower supply● Self-supplying plug-in display ● Freely scaling via 3 buttons ● Integrated self-diagnosticCharacteristics TransmitterThe GIA 0420 VO is a microprocessor-controlled displaying device for 4..20 mA standard signals.Any transmitter (with 4..20 mA output) can be connected to the device. The range adjustment of the GIA 0420 to the transmitter isdone by entering the initial and final value and the decimal point position. No additional auxiliaries are needed for this adjustment, butthe three buttons accessible after removal of the cover. The device is mounted by easy plug-in of the special adapter (elbow-type plugaccording to EN 175301-803/A)Design typesThe GIA 0420 VO doesn't need a separate auxiliary supply but is directly supplied by the measuring current. It has an integrated selfdiagnostic which checks the device that it works correctly. This selfdiagnostic together with the transmitter's check for “sensor break”and “sensor short circuit” and range exceeding or falling below ensures an optimum of operational reliability.Technical data Measuring input Input signal Accuracy Measuring rate FilterVoltage load Power supply Working temperature Display Display Height Display rangeDecimal point Scaling Connection Housing Protection class:::::4..20 mA (2-wire) ± 0.2 % FS ±1 digit 5 measurements / seconds adjustableapprox. 2 V at option S2: approx. 3 V at option ex: approx. 3.5 V : self-supplying: devices is supplieddirectly from measuring current : 0..50 °C:::::LCD display 10 mm -1999..+9999 digit any position freely scalable via 3 buttons (accessibleafter cover has been removed) : special plug design for elbow-type plug (EN 175301-803/A) for easy plug-in: ABS, front screen made of polycarbonate : front IP65pi-gr-gia0420vo_e V2.01-031
