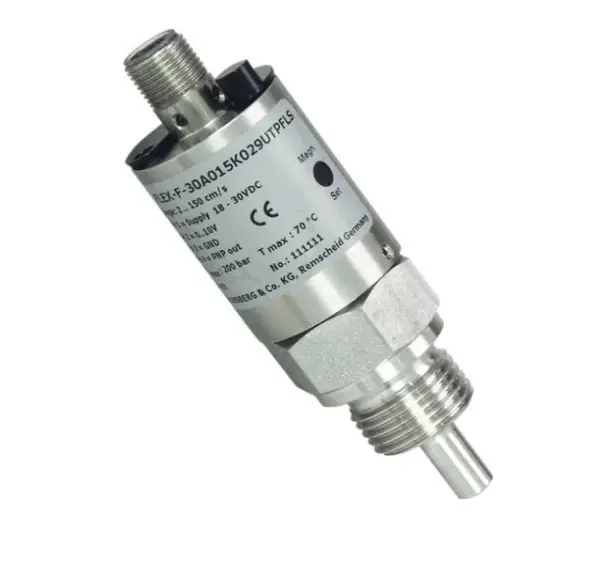

Senseca F O 2 15 GV 7 10P IP65 Flow Switch

Flow transmitter / switch FLEX-FTechnical data Sensor Process connection Metering rangeMeasurement accuracy● Compact robust flow switch / transmitter ● Combination with temperature switch or transmitterpossible ● Mo moving parts in the medium being monitored ● Only one medium-contact material● Simple to use ● Very low pressure loss ● Various sensor lengths and models● Short response times for a calorimetric sensor ● Cable outlet infinitely rotatable● Small installation width, therefore very narrow pipeworkCharacteristics The FLEX-F flow sensor monitors fluid media. Its compact formcombines the built-in sensor and converter / counter which, depending on the model, trigger a limit value output (push-pull,compatible with PNP and NPN) or an analog output (4..20 mA or 0..10 V) or both. The limit switch can optionally also be operated asfrequency output. .The converter / counter record two process parameters: the flow speed of the medium and its temperature. Both parameters can beassigned to the analog output or to the switching output. The following output combinations are available:Repeatability Operating pressure Metering range Temperature Operating temperatureStorage temperature Temperature gradient Materials medium-contact Materials, nonmedium-contactAdjustment Supply voltage Current requirement Switching outputSwitching hysteresis Display Analog outputFlow Analog output Switching outputTemperature Analog output Switching outputcalorimetric measurement principle screw-in thread G 1/4 A..G 1/2 A, Push-in sensor Ø12 mmwater 2..150 cm/s or 3..300 cm/s oil available on request depending on the installation location andflow conditions typically ±10 % of full scale value or 2 cm/s, measured in the T-piece ±5 % of full scalevalue ±1 %PN 100 bar, 200 bar available on request 0..+70 °C (high temperature model0..+120 °C with gooseneck) 0..+70 °C -20..+80 °C 4 Kelvin/s Sensor1.4571Housing Plug Clip by means of magnet 24 V DC ±10 % max. 100 mA1.4305 PA6.6 PA6.6transistor output "push-pull" (resistant to short circuits and polarity reversal)Iout = 100 mA max.flow 4 % of full scale value, temp.: approx. 2 °C yellow LED (On = Normal / Off = Alarm /rapid flashing = Programming) 4..20 mA / Load 500 Ohm max. or 0..10 V for round plug connector M12x1, 4-poleElectrical connection Weight approx. 0.2 kg (standard version) Ingress protection IP 67Conformity CEThe switching output can be ordered as a minimum or a maximum switch.dsh_fam_flex-f_en_vs01 V1.02-001
