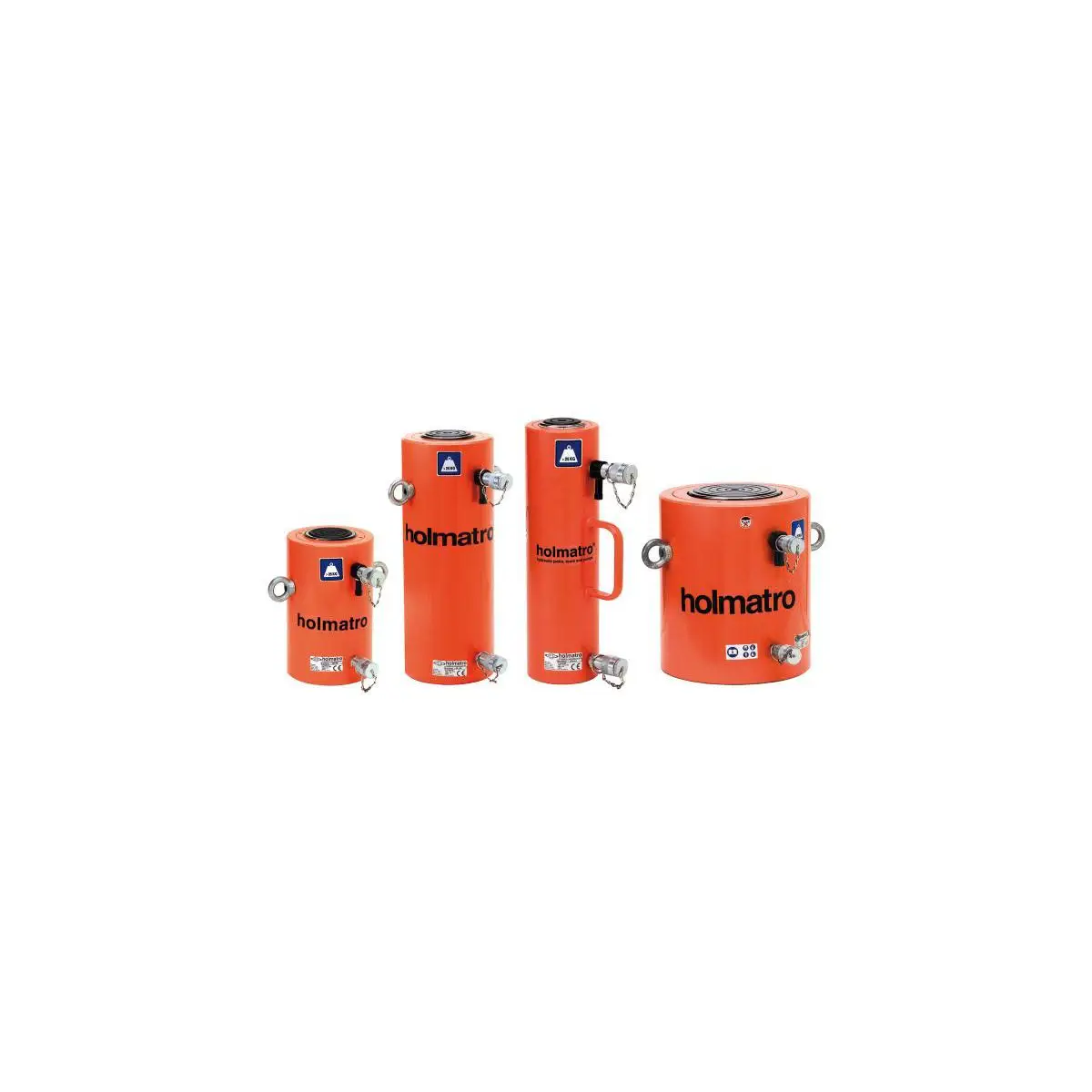

Holmatro 500 30 H HJ Hydraulic Cylinder

CYLINDER HJ 500 H 15Double acting, hydraulic return cylinder. Standard with High Flow female coupler A 118 on inlet port, High Flow female coupler with pressure relief valve A 418 on outlet port and flat saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.043Basic specificationsmodelHJ 500 H 15max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage500 t1102311 lbstroke150 mm5.9 inclosed height442 mm17.4 incapacity4994 kN / 509.2 t / 4994 / 509.2 (kN/t)1122696 lbfeffective pressure area (press)707 cm2109.6 sq. in.effective pressure area (retract)360.3 cm255.8 sq. in.General specificationsrequired oil content (press)10605 cc358.6 ozrequired oil content (retract)5400 cc182.6 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typehigh tonnageconnectionA 118Dimensions, weight and temperatureweight, ready for use390 kg859.8 lbTechnical drawing dimensionsdimension A442 mm17.4 indimension B412 mm16.2 indimension C210 mm8.3 indimension D170 mm2.8 indimension D285 mm3.3 indimension E85 mm3.3 indimension F435 mm17.1 inI typeI-1dimension P90 mm3.5 in
