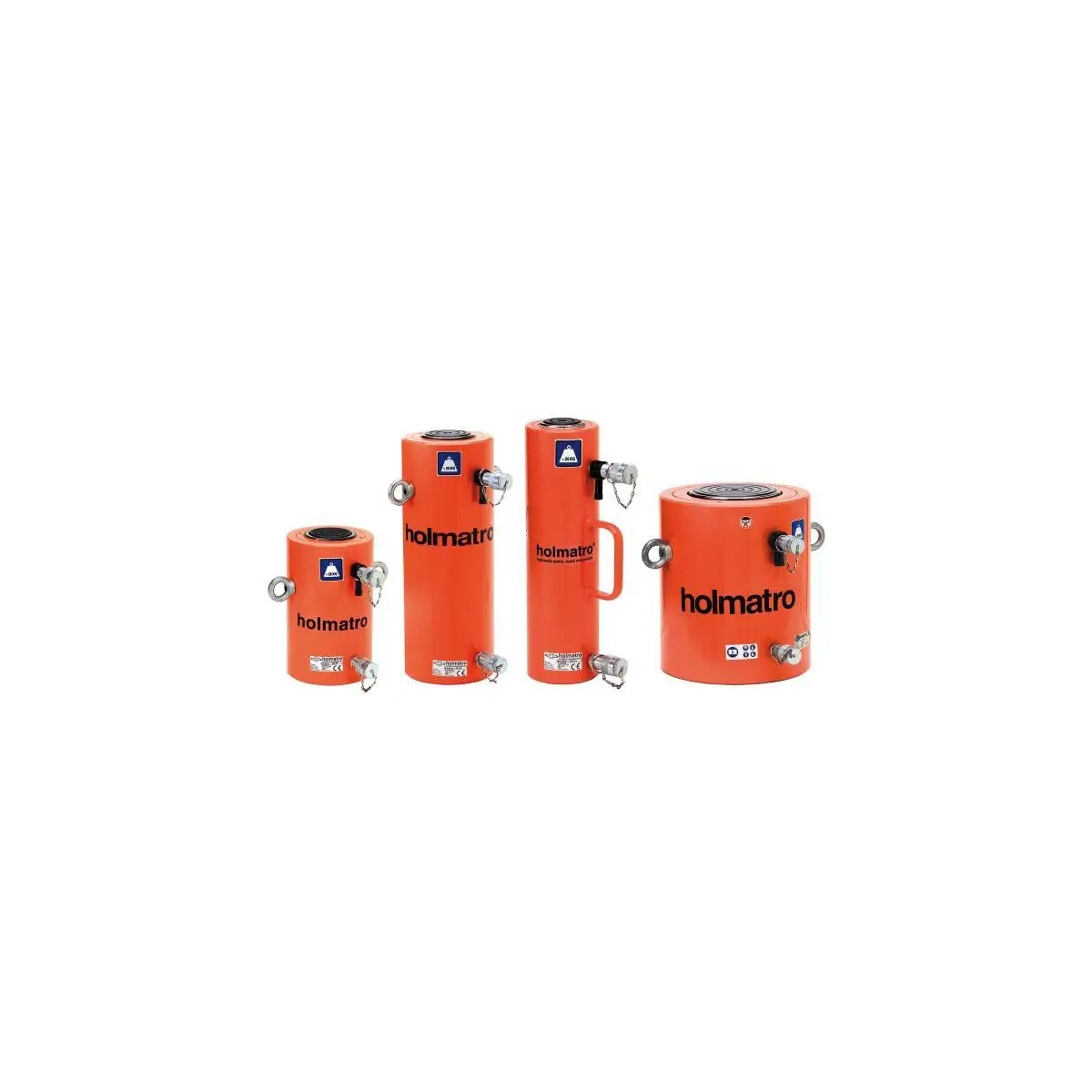

Holmatro 400 HJ 30 H Hydraulic Cylinder

CYLINDER HJ 400 H 30Double acting, hydraulic return cylinder. Standard with High Flow female coupler A 118 on inlet port, High Flow female coupler with pressure relief valve A 418 on outlet port and flat saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.092Basic specificationsmodelHJ 400 H 30max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage400 t881849 lbstroke300 mm11.8 inclosed height572 mm22.5 incapacity3750 kN / 382.4 t / 3750 / 382.4 (kN/t)843034 lbfeffective pressure area (press)530.9 cm282.3 sq. in.effective pressure area (retract)216.7 cm233.6 sq. in.General specificationsrequired oil content (press)15900 cc537.6 ozrequired oil content (retract)6476 cc219 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typehigh tonnageconnectionA 118Dimensions, weight and temperatureweight, ready for use413 kg910.5 lbTechnical drawing dimensionsdimension A572 mm22.5 indimension B358 mm14.1 indimension C200 mm7.9 indimension D170 mm2.8 indimension D285 mm3.3 indimension E76 mm3 indimension F565 mm22.2 inI typeI-1dimension P80 mm3.1 in
