Holmatro Purpose 20 Multi HGC 50 S Cylinder

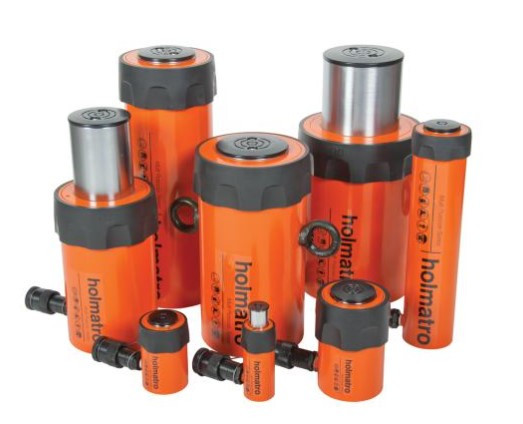

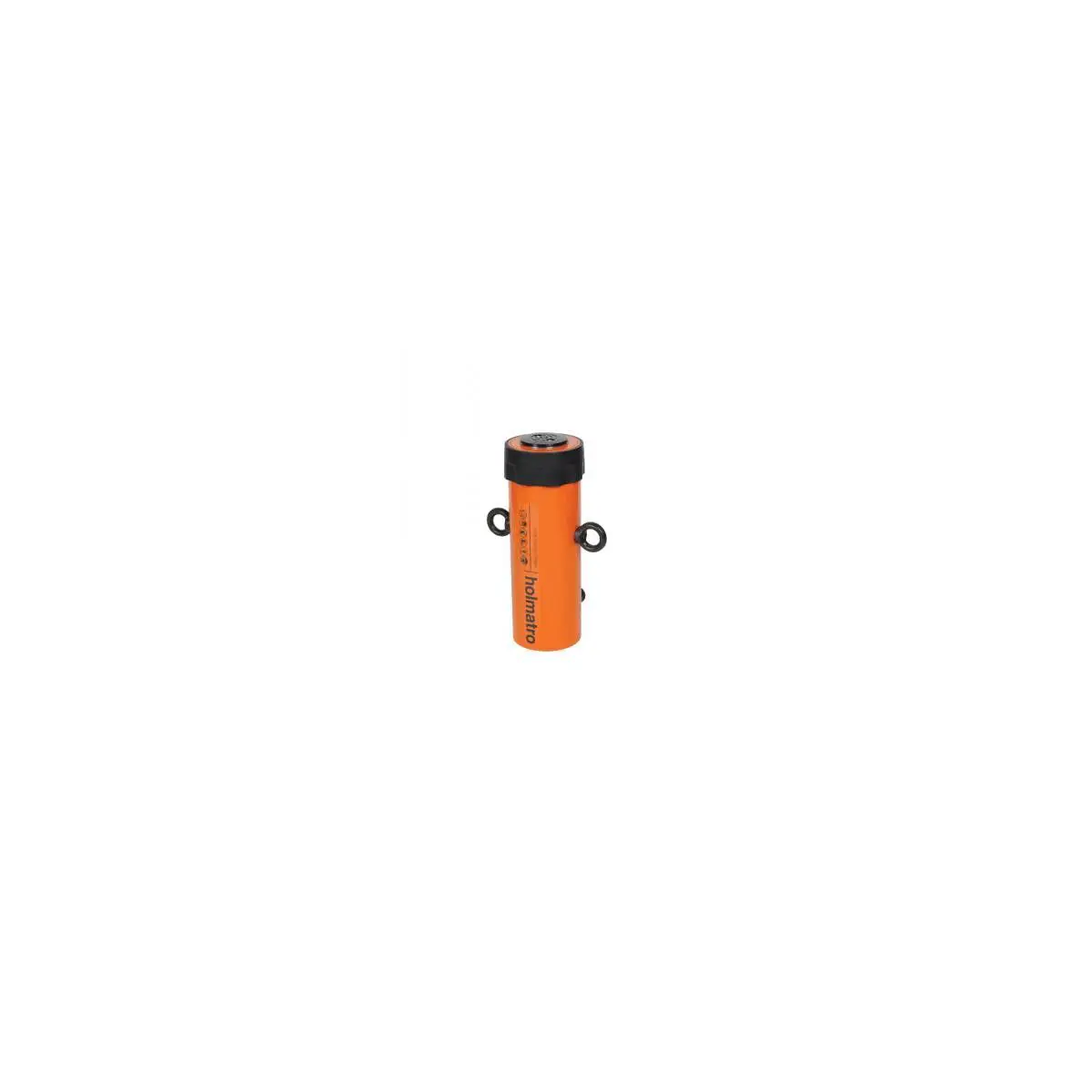

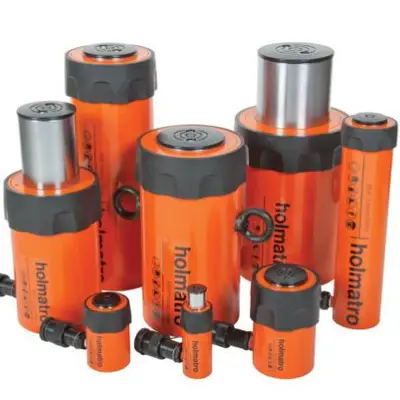

MULTI PURPOSE CYLINDER HGC 50 S 20High quality Multi Purpose Cylinder. Fitted with unique features that considerably lengthen its life span and service life. Offers appropriate solutions for the most varied applications. Holmatro Multi Purpose Cylinders come in 50 models and are available in different capacities and with different stroke lengths.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.112.252Basic specificationsmodelHGC 50 S 20max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage50 t110231 lbstroke200 mm7.9 inclosed height326 mm12.8 incapacity510 kN / 52 t / 510 / 52 (kN/t)114653 lbfeffective pressure area70.9 cm211 sq. in.General specificationsrequired oil content (effective)1418 cc47.9 ozacting typesinglereturn typespringmaterialsteelcylinder typemulti purposeconnectionA 118Dimensions, weight and temperatureweight, ready for use26.4 kg58.2 lbTechnical drawing dimensionsdimension A326 mm12.8 indimension B127 mm5 indimension C182 mm3.2 indimension C255 mm2.2 indimension D80 mm3.1 indimension E25 mm1 indimension F320 mm12.6 indimension G8 mm0.3 indimension J5”-12-UN threadsizedimension K57 mm2.2 indimension M10 mm0.4 indimension N85 mm3.3 indimension OM12x18 (2x) threadsizedimension T180 mm7.1 indimension U54 mm2.1 inangle A190 °dimension L65 mm2.6 inNormsASMEB30.1
