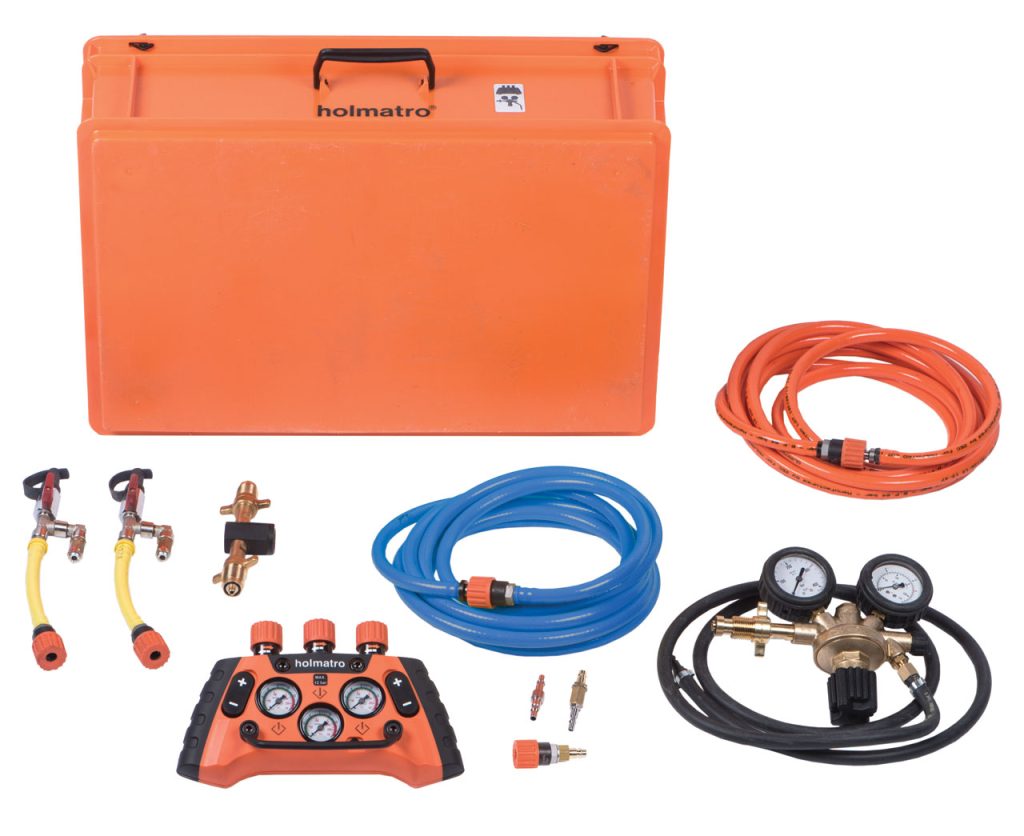

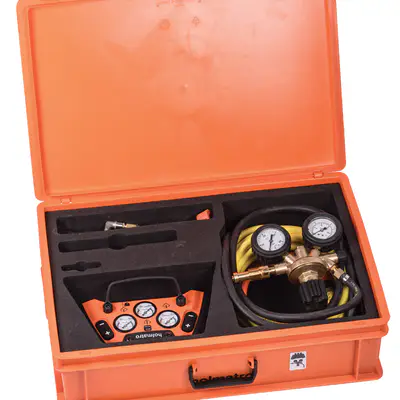

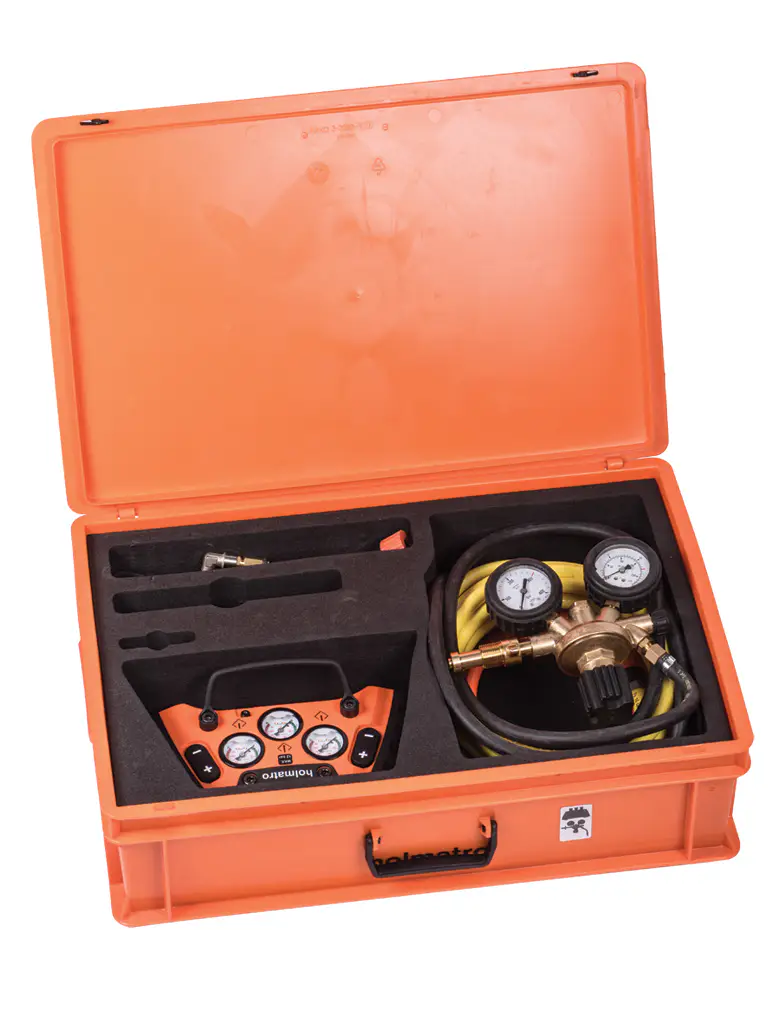

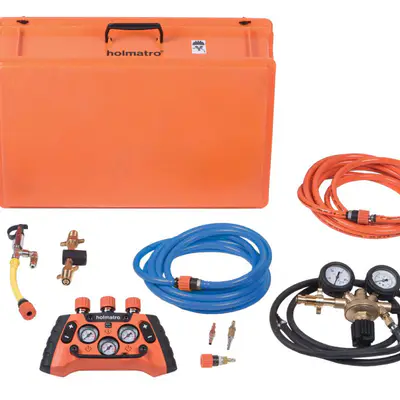

Holmatro ACS 12 Air Control Set

DESIGNED AROUND YOU It’s often the small details that make a difference. An integratedcarrying handle to easily pick up your lifting bag. A simple arrow for a quick visual indication of the lifting height. An extra gauge on thecontrol unit to keep an eye on the incoming air pressure. Discover all the smart features of the HLB lifting bags range!Model number imprinted Air inlet at a right angle Integrated dust capControl Unit HDC 12LED-illuminated LightweightAIR SOURCE PRESSURE GAUGEOptimized non-slip designEasy checking of incoming air pressure. Allows for timely air source replacement.Aramid-reinforced, 4:1 safety Reflective markingsSAFETY COUPLER (ALSO ON HOSES)Unlocks in two steps for improved safety: pressure release before hose disconnection.CARRYING BARFor easy carrying. Protects against damage and prevents accidental operation when the control is upsidedown.LABELSXXXXXXXXX=placeholder for datamatrix=helvetica bold 5ptINTUITIVE BUTTON OPERATIONx2Precise air flow regulation for controlled and safe lifting.Lifting capacity indication38.321.030utlinesXXXXXXXXX36.5 l 1.29 cu.ft.Chamfered edgesWWW.HOLMATRO.COM NEN-EN 13731:2007ARAMID REINFORCED12 bar370 kN 83 163 lbf 37.7 tNON-RETURN VALVESindication of lifting height8 bar247 kN 55 442 lbf 25.1 tIndependent controlled lifting: no risk of air pressure shifting from one bag tothe other.x2max. 12 bar max. 1.2 MPa max. 174 psiIMPORTANTINFORMATION LABELSall labels have 2mm bleedClear indication of safety warnings, technical specifications and liftingheight. Data matrix for equipment management in the free Holmatro Service Portal.6 | Holmatro Lifting Bags SeriesCENTER MARKINGS ANDINTERLOCKING PROFILESTANDARDSLIDER PADSINTEGRATEDCARRYING HANDLEINSERTS FOROPTIONAL LIFTING EYESTo help you position a smaller bag onto a larger model. The interlocking profile maximizes thecontact area and stability of inflated lifting bags.For easy insertion underneath an object.Makes it easier to pull your lifting bag from the truck and take it withyou.To attach a rope for easy maneuvering of your lifting bag.Lifting Bag HLB 38Full system compliant with all relevant safety standards, including EN 13731.WATCH THE VIDEO ON HOLMATRO.COM/HLB 7
