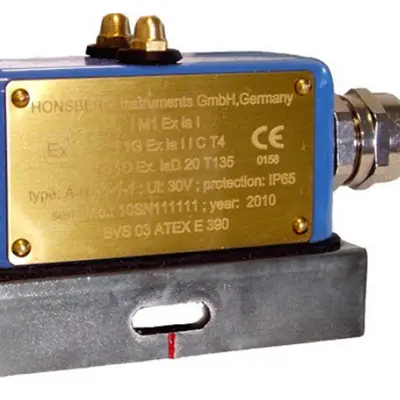

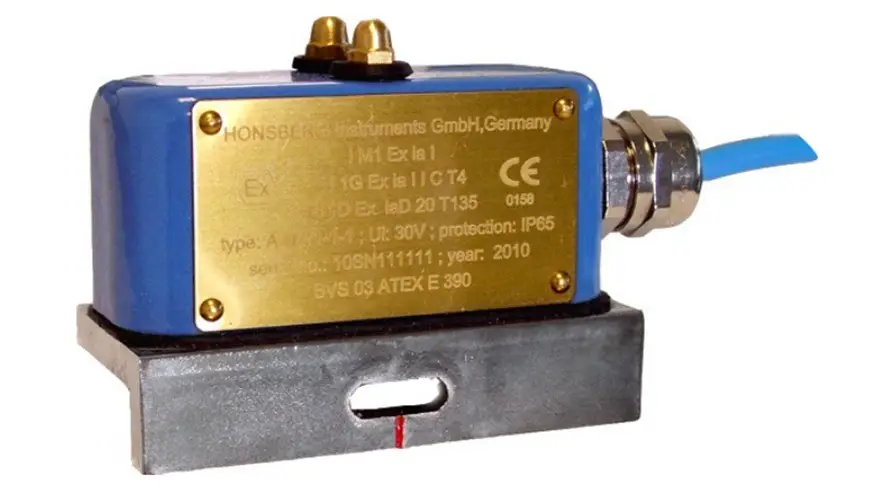

Senseca A-H1.1-1 Switch Head Atex

Senseca products, including Senseca A-H1.1-1 Switch Head Atex, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. Even if Senseca A-H1.1-1 Switch Head Atex is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.Switching head A-H1.1 For devicesHD1KHD1KO-DimensionsHD2KHD2KO-● I M1 Ex ia I Ma ● II 1G Ex ia IIC T4 Ga ● II 1D Ex ia IIIC T135°C DaHandling and operationCharacteristicsNoteIntrinsically safe switching head with reed switch and ATEX approval, for the HD range of devices, for use in intrinsically safepower circuits.AllTechnical data Switch reed switch Medium -20..+120 °C temperature Ambient-20..+50 °C temperature Weight 0.5 kg additionally without signal lamp Wiringtransformer No. 0.213HD1KO- / HD2KO● Display with plastic parts - do not open in an explosiveatmosphere.1Switching voltage Switching current Switch performance with signal lamp Wiring23max. 30 V max. 1.5 A max. 50 WAdjustment If it is necessary to set the switching value, the switching head can be adjustedlengthways. When the switching value is reached, the switching unit is fixed in placeby a fastening bolt.Ordering code The basic device is ordered e.g. HD1K-015GM005A with Switching head e.g. A-H1.1-1.Transformer with signal lamp No. 0.208R1 Switching voltage Switching current Switch performance Protection classIngress protection Electrical connection● For use only in intrinsically safe power circuits provide a suitable isolating amplifier.● Cable lengths max. 5 m.● It must be ensured that the values given for voltage, current, and power are not exceeded.● When switched on, a load must be connected in series.● The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protectivecircuit.23max. 15 V, 28 V or 36 V max. 1.5 A max. 50 W 3 - Protective extra low voltageIP 651.A-H1.1 1. Wiring - switching voltage 1 wiring no. 0.213 - 30 V 2 wiring no. 0.208 - 15 V3 wiring no. 0.208 - 28 V 4 wiring no. 0.208 - 36 Vcable 2.5 m, other cable lengths up to max.5 m are optionally availablepi-ho_ze-a-h1_e V1.02-011
