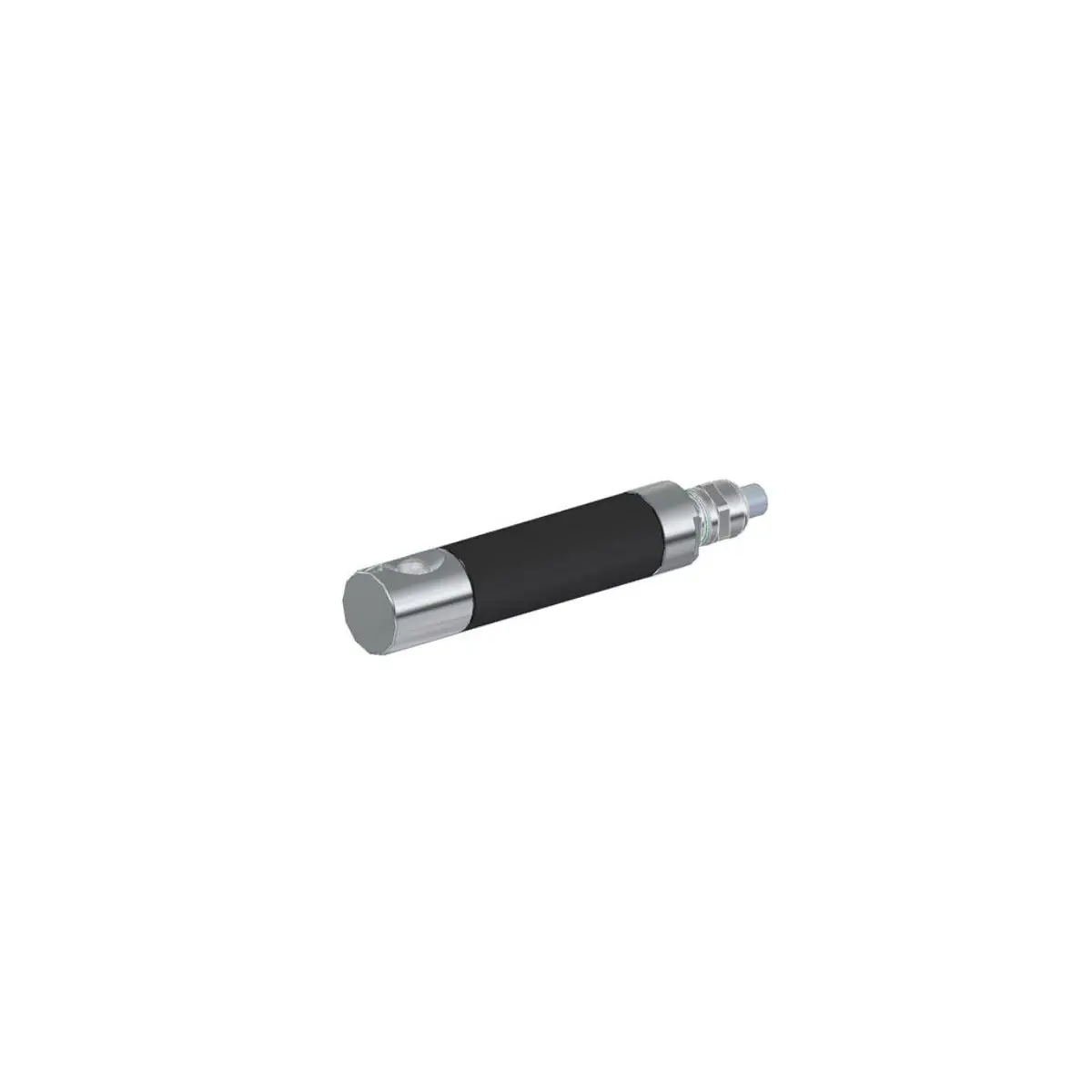

Lamtec UV 1 659D31 01 /50 0 Flame Sensor

LAMTEC burner sequencersBurnerControl BC400.Technical data Item number668R0100 ...Dimensions [mm]See dimensional drawingsApplicationBurner sequencer for gas, oil and dual-fuel burners. Control and monitoring of burnerswith unlimited performance in intermittent operation and in continuous operation.MaterialPlasticWeight [kg]0.505Power supply voltageMCC:Inputs:Outputs:24 VDC +/-20 %, SELV 230 V/120 V +10/-15 %, 47-63 Hz, 24 VDC ± 20 % 230 V/120 V +10/-15 %, 47-63 Hz,24 VDC ± 20 %Power consumptionmax: 10 WProtection classIP20 (if all terminals are fitted)Maximum pre-fuse8 A fast-actingLife timeApprox. 10 yearsFieldbus couplingMODBUS/TCP Ethernet defaultsPROFINET Ethernet defaultsLAMTEC SYSTEM BUS Other bus couplings via separate moduleAmbient temperature-30 ... +70 °CCurrent consumptionmin: 200 mA max: 335 mAApprovalSee BA-CMS-DLT7200Dimensional drawing of BurnerControl BC400www.lamtec.de9
