Meggitt Vibro-Meter CV211 Velocity Transducer

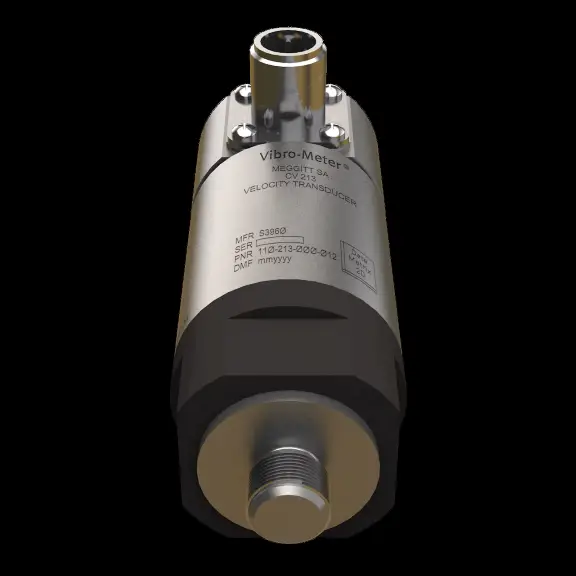

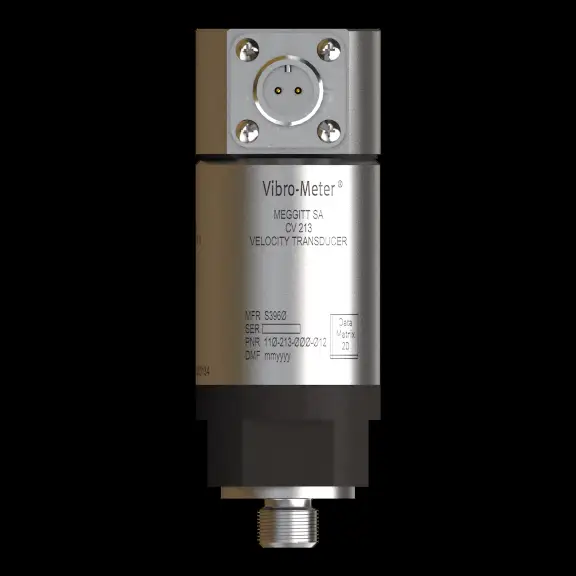

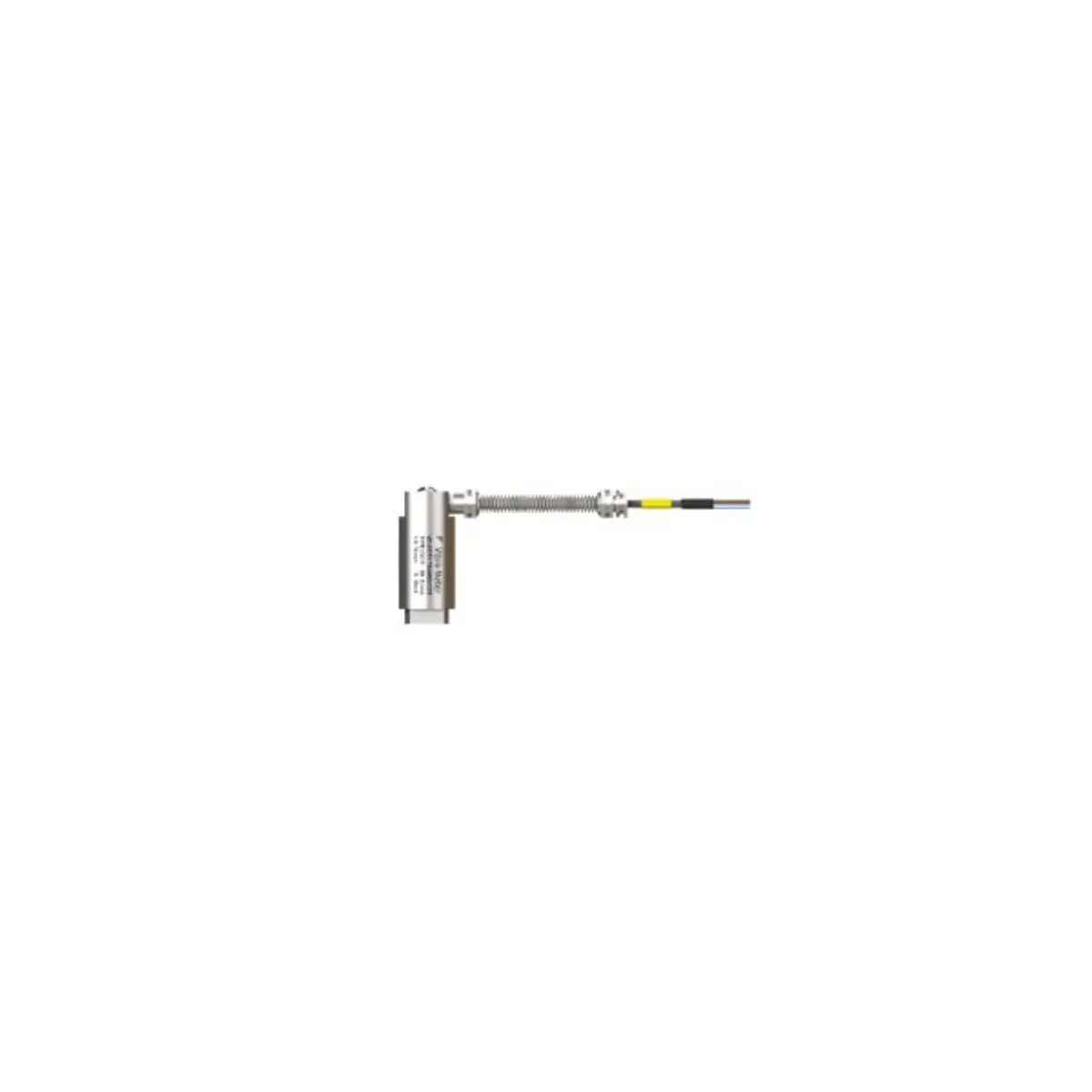

Velocity TransducerVelocity transducers CV213 and CV214DESCRIPTION (continued) The transducer’s sensing element consists of a coilmoving around a permanent magnet. This assembly produces a voltage directly proportional to the vibrationvelocity. The signal is generated without the need for an external power source, a feature that makes thesedevices suitable for portable measurement applications.industrial environments, the transducer should be installed with its cable assembly covered by a flexibleprotection tube (sheath) made of metal, for mechanical protection.For specific applications, contact your nearest Meggitt Sensing Systems representative.Dedicated cable assemblies are available for each velocity transducer. The ED120 assembly is intended forthe CV213 and the ED121 for the CV214. In very harshSPECIFICATIONSGeneral Operating principle Power supply Signal transmission Sensitivity• Directionality• Nominal sensitivity at 22 °C (71.6 °F) ± 5 °C Frequency range Typical frequency response• 10 Hz• 30 to 400 Hz• 400 Hz to 1 kHz2/7a r: Calibrated along the long axis of the transducer : 20 mV/ mm / s (508 mV/ in / s) ± 5%d t s r i FResonant frequency Transverse sensitivity Output impedance Internal insulation resistanceat 22 °C (71.6 °F) ± 5 °C• Case to (+) pole• Case to (−) pole• Machine to caset f: Moving coil and magnet : No external power supply required : 2-wire system insulated from casing, voltage-based outputwith signal of 100 Hz : 10 Hz to 1 kHz : −3 dB : ± 0.5 dB : ±1 dB.See also Typical frequency response curves on page 3.: 10 Hz ± 1 Hz (nominal) : Max. ± 10% : < 700 Ω: > 107 Ω : > 107 Ω : > 107 Ω© Meggitt SA / 262-102 / Version 10 / 18.07.2018 / E
