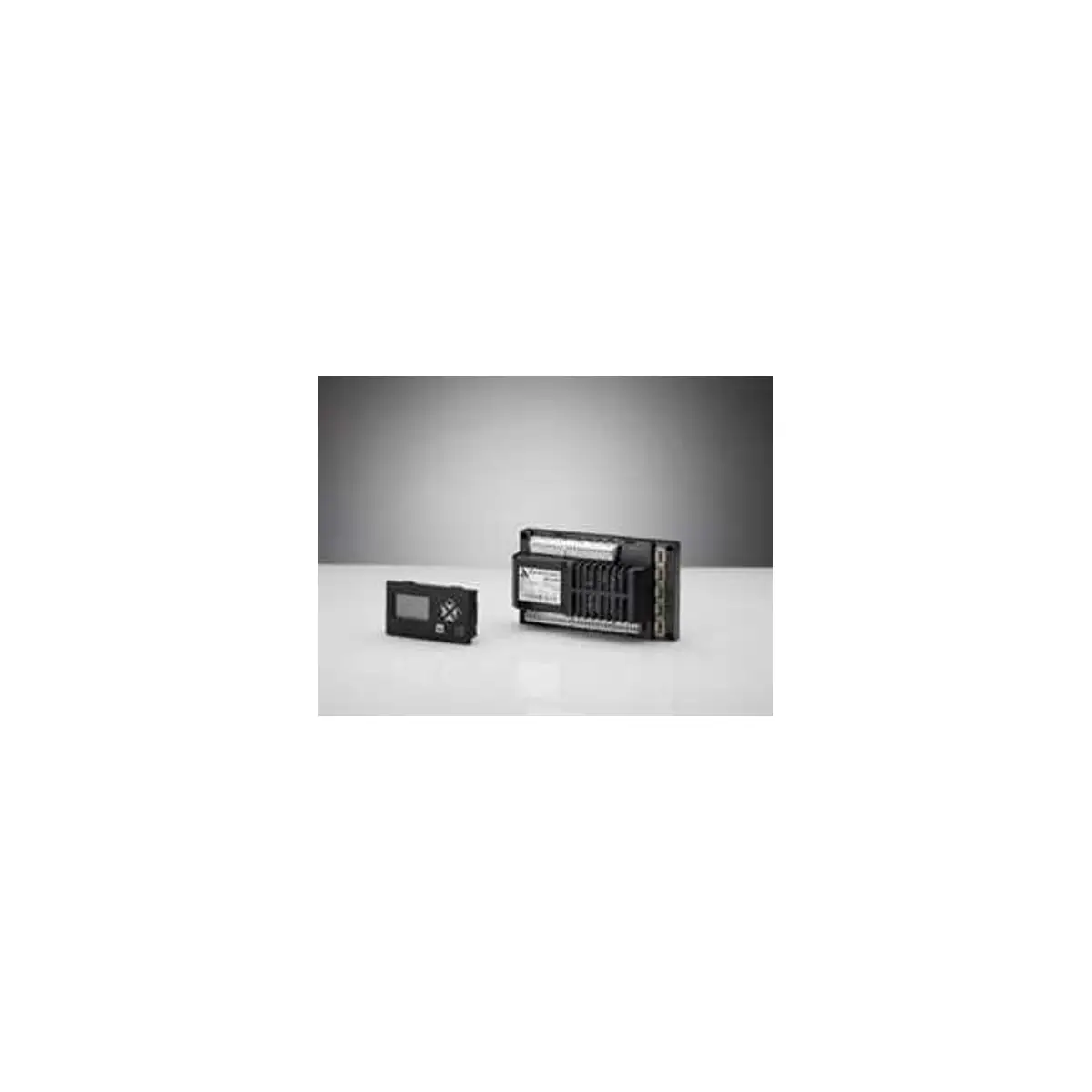

Lamtec VSM100 Extension Module

Extension ModuleTechnical Data Extension Module VSM100 Technical Data Extension Module VSM100Fig. 1 Dimensions VSM100General data Power supply24 VDC +10/-15 % SELVCurrent consumption60 mAHousingPolyamide 6.6 (panel: polycarbonate)Dimensions (H x W x D)69 x 35 x 70.3 mm | 2.72 x 1.34 x 2.77" inWeightca. 80 g | 0.18 lbFlammabilityUL-94 V0 (panel: UL-94 V2)Mounting positionas desiredInstallationTS35 mounting rail as per EN 50022Connection cross section2.5 mm2 | 13 AWG (plugged LSB terminals: 0.5 mm² | 20 AWG)Speed setpoint output 0/4 ... 20 mA Max. load800 Resolution1000 digitShort-circuit resistantyes, unlimitedSpeed setpoint output 0 ... 10 V Max. output current10 mAResolution1000 digitShort-circuit resistantyes, unlimitedSpeed feedback input 0/4 ... 20 mA Load150 Resolution1000 digitOverload protectionprotection against accidental application of voltages up to 28 V
