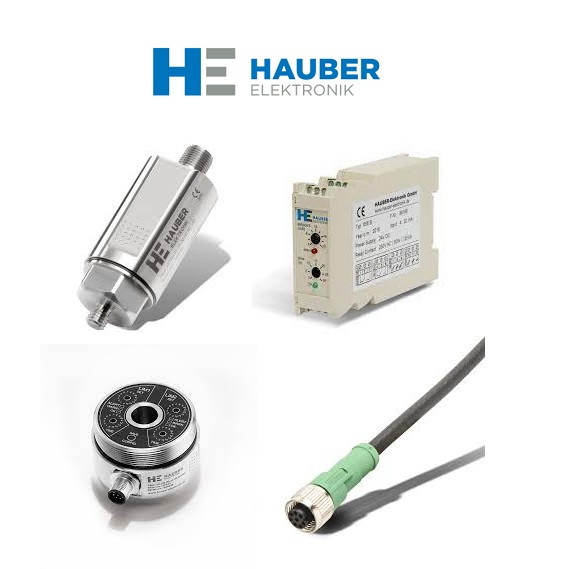

Hauber 664.8.200.0 Vibration Type Valve

Hauber products, including Hauber Type 664.8.200.0 Vibration Valve, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. Even if Hauber Type 664.8.200.0 Vibration Valve is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.Product Name: Hauber Type 664.8.200.0 Vibration ValveProduct Brand: HauberProduct Code: HauberProduct Artikel: 0020540002HAUBER-Elektronik GmbH9Electrical Data Before Starting-Up the control, the mains must be secured with a microfuse(time delay, 32 mA, breaking capacity C)!8 mm/s 0...0... 16 mm/s 0... 32 mm/s 0... 64 mm/s 0... 128 mm/s 0... 256 mm/s 0... 512 mm/s0...1000 mm/sMeasuring Range:•Each Type 664 has one of the listed measuring ranges.•Further measuring ranges on request.•Please indicate the measuring range in your order.Measuring accuracy:" 5%Transverse sensitivity:<5%Frequency range:1 Hz...1000 HzOutput signals:4...20 mA (Proportional to the Measuring Range)Voltage supply:24V DC " 10%Power input (max.):25 mABurden/Load (max.):500 SFusing:Microfuse (Time delay, 32 mA, breaking capacity C)Valid Operating Temperature Ranges of all Variants StandardZone-1-21Zone-2-22Ambient Temperature -20 °C…+60 °C-20 °C…+60 °C-20 °C…+60 °CMeasuring HeadTemperatur-20 °C…+100 °C -40 °C…+100 °C-40 °C…+85 °C(at the Fastening)7
