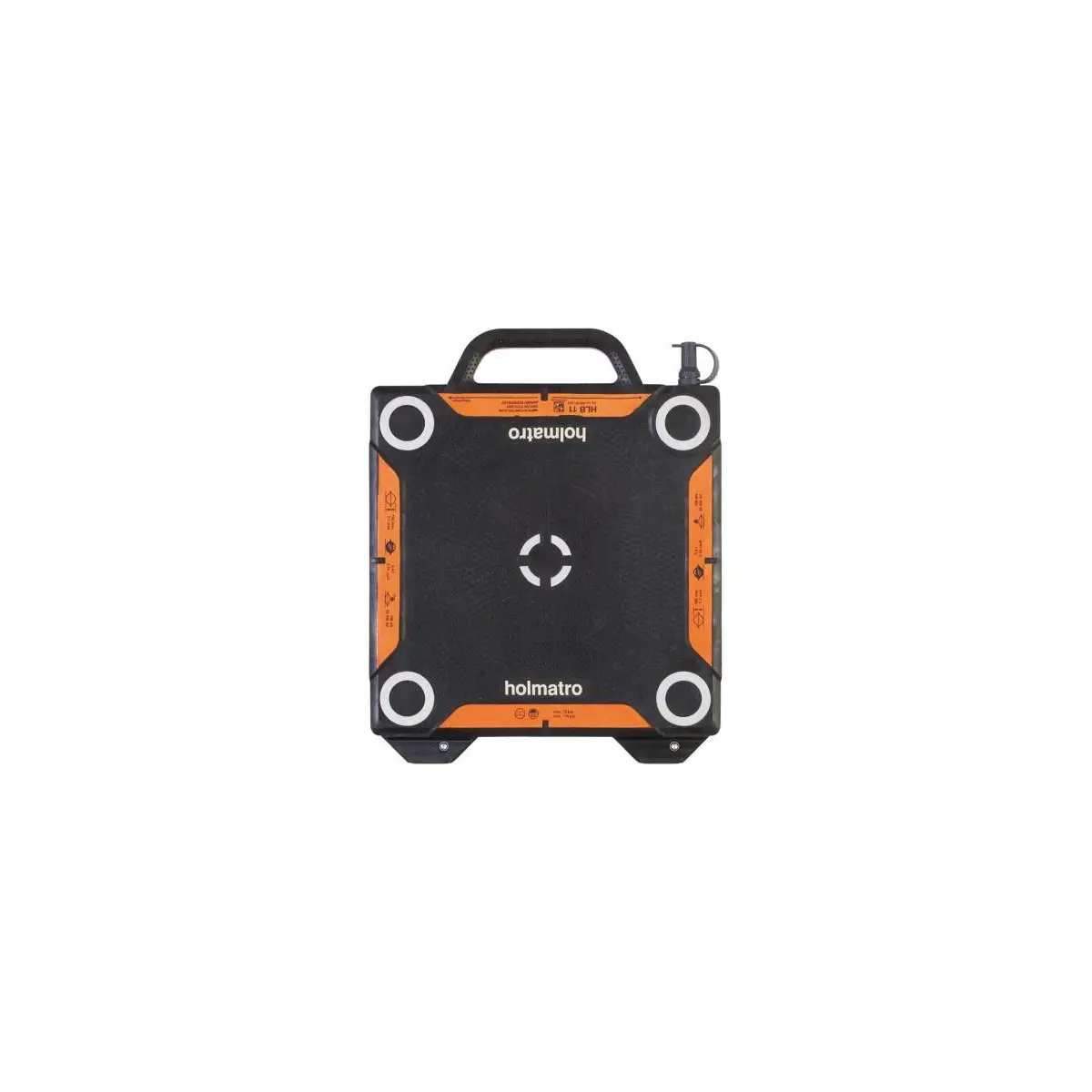

Holmatro 11 Bag Lifting HLB

Lifting BagLIFTING BAG HLB 11High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.Standard supplied with:• Integrated carrying handle with capacity indication• Slider pads to facilitate lifting bag placement• Flexible integrated dust cap on air inletDetailsArticlenumber350.321.025Basic specificationsmodelHLB 11max. working pressure12 / 1.2 (bar/Mpa)174 psiPerformancemax. lifting capacity110 / 11.2 (kN/t)24729 lbfmax. inflation height207 mm8.2 inthickness incl. profile25 mm1 inmax. lifting capacity (12 bar/174 psi)110 / 11.2 (kN/t)24729 lbfmax. lifting capacity (8 bar/116 psi)73 / 7.4 (kN/t)16411 lbfGeneral specificationsmaterialreinforced with 3 aramide inlaysair content (8 bar/116 psi)43.2 l11.4 gal / 1.5 cu ftmin. bursting pressure696 psiconnectionISO 6150 Cair content (12 bar/174 psi)64.8 l17.1 gal / 2.3 cu ftwater content5.4 l1.4 gal / 0.2 cu ftDimensions, weight and temperatureweight, ready for use3.2 kg7.1 lbtemperature range-20 + 55 °C-4 + 131 °Fdimensions (AxBxC)403 x 325 x 25 mm15.9 x 12.8 x 1 inNormsEN-13731Yes
