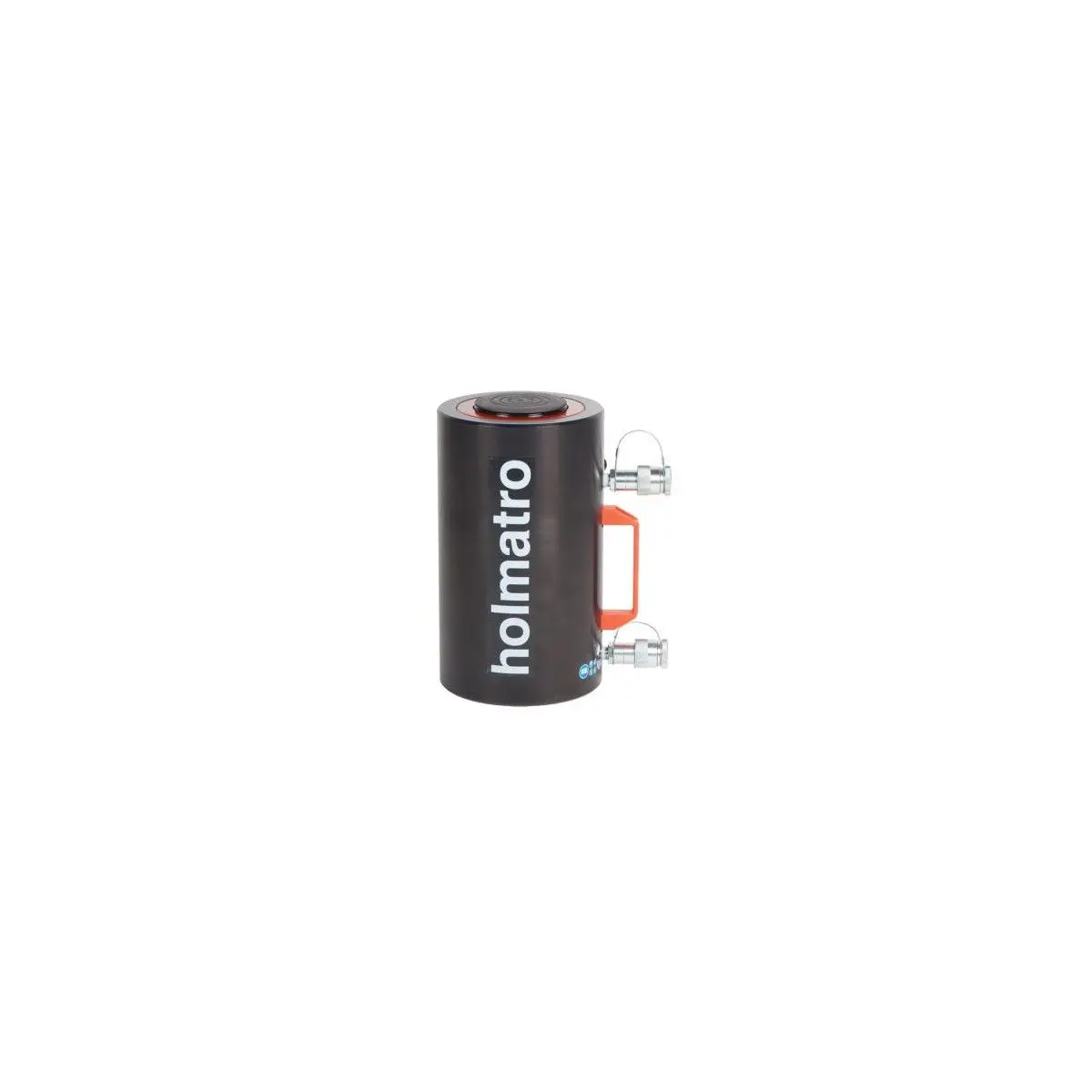

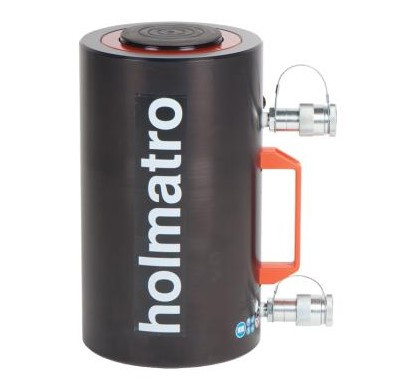

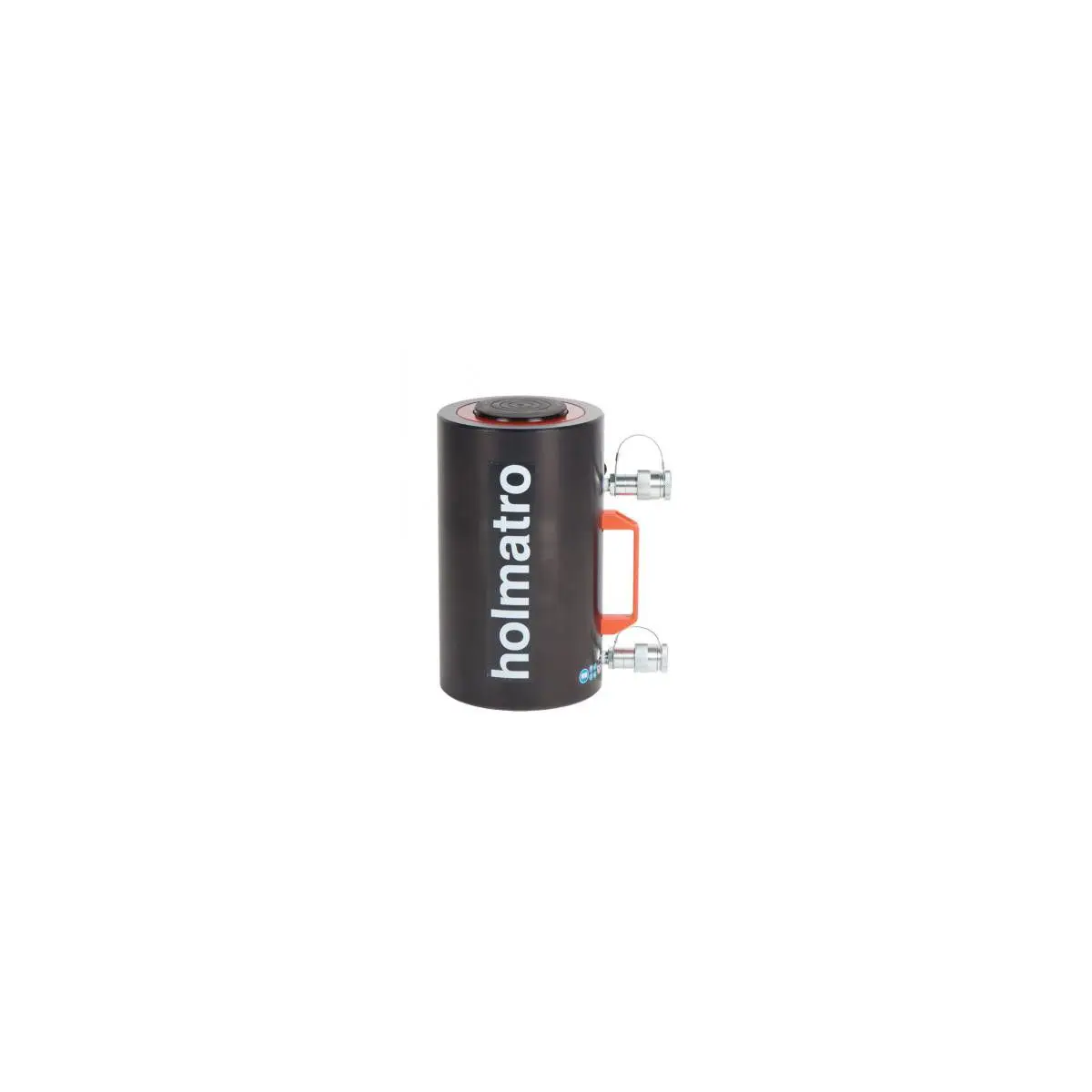

Holmatro Aluminium H 100 15 HAC Cylinder

Aluminium CylinderALUMINIUM CYLINDER HAC 100 H 15Double-acting cylinder produced from 7075-T6 black anodised aluminium. Just as powerful as, though many times lighter than its steel equivalent. This makes it easier and safer for a single user to lift higher tonnages.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.107Basic specificationsmodelHAC 100 H 15max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage100 t220462 lbstroke150 mm5.9 inclosed height346 mm13.6 incapacity1030.6 kN / 105.1 t / 1030.6 / 105.1 (kN/t)231688 lbfeffective pressure area (press)143.1 cm222.2 sq. in.effective pressure area (retract)56.5 cm28.8 sq. in.General specificationsrequired oil content (press)2147 cc72.6 ozrequired oil content (retract)848 cc28.7 ozacting typedoublereturn typehydraulicmaterialaluminiumcylinder typestandardconnectionA 118Dimensions, weight and temperatureweight, ready for use26.8 kg59.1 lbTechnical drawing dimensionsdimension A346 mm13.6 indimension B195 mm7.7 indimension C105 mm4.1 indimension D176 mm3 indimension D276 mm3 indimension E35 mm1.4 indimension F335 mm13.2 inI typeI-2dimension P72 mm2.8 inNormsASMEB30.1
