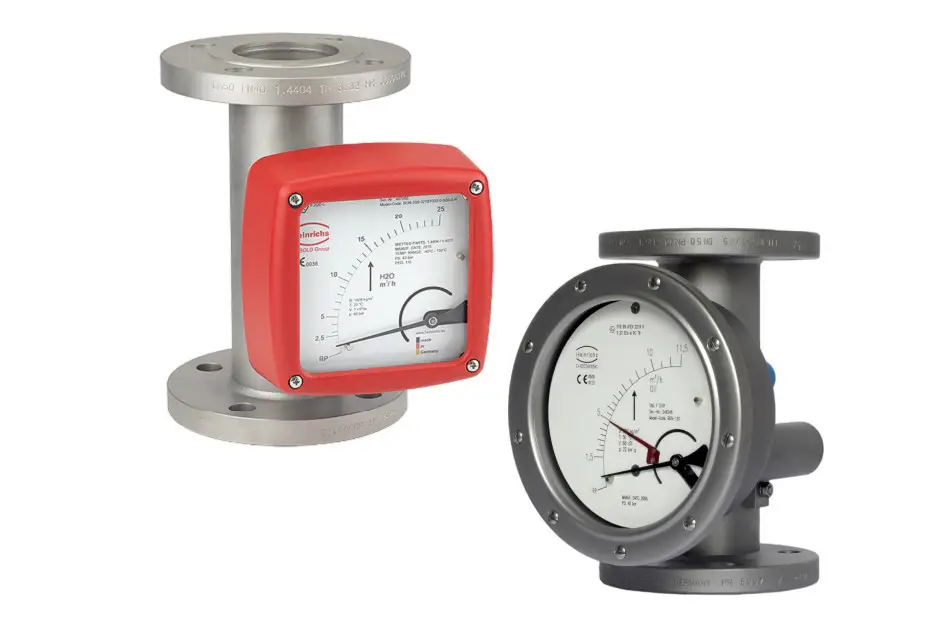

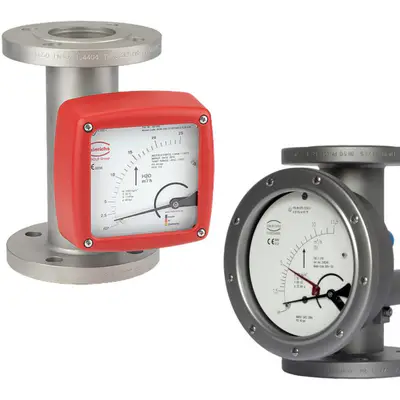

Heinrichs BGN-S321BT000-0-S26-0-H Flow Meter

Heinrichs Messtechnik GmbH Technical Data FittingDisplay UnitMaterials:Protection class: 1.4404 (316 L) / 1.4571 (316 Ti)  Hastelloy C-22  PTFE Aluminum  Stainless steelProcess connection: Flanges according to o EN 1092-1 o ASME B16.5 o JIS B2220  Thread o NPTo G-thread  TriClamp Special connections on requestNominal pressure: PN 40, ASME Cl150 / 300 (Standard) (BGN-S/H)  PN 16, ASME Cl150 (Standard) (BGN-P)Higher pressures on request (max. 600 bar)Process temperature: -40°C … +350°C (BGN-S/H)  -40°C … +125°C (BGN-P)Electrical output Switching outputs: max. 2 inductive switch contacts (SJ 3,5 N) Refer to type approval for elec. parameters max. 2 inductive switching contacts (SJ 3,5 SN) (safety design) Refer to type approval for elec. parameters max. 2 micro changeover switches (Reed switch Umax:175VDC, Imax:0,25A, Pmax:5W)Transmitter ES: ES with 4...20 mA (HART®)  ES with 4...20 mA (HART®) with 2 switching contacts ES with 4...20 mA (HART®) with 1 switching contacts and 1 pulse out  ES with Profibus-PA® ES with 4...20 mA (HART®) and Counter module with 2 NPN Outputs  ES with Foundation FIELDBUS®Power supply transmitter ES: 14 … 30 VDC, 2-wire (reverse polarity protected)Ambient temperature:Outputs Transmitter ES: -40°C … +80°C without electric accessories  -25°C … +70°C / +80°C with limit switches -40°C … +70°C with ES transmitterpassive, galvanic isolatedMeasurement deviation: Binary 1 and 2: BGN-S/H Water : ± 1.6% of the measured value Gas : ± 1.8% of the measured valueqG 50% acc. to VDI/VDE 3513-2  BGN-P Water :± 2% of the measured value Gas: ± 2,2% of the measured value qG 50% acc.to VDI/VDE 3513-2  ± 0,2% additional error with transmitter ES PPA or FF:Repeatability: ± 0,5 %Optional: Heating/cooling  Gas damping / spring stop or combinations  Self-draining versionPage 5 Analogue:4…20 mA with HART® Ui=30 V, Ii=150 mA, Pi=1 W 2x Contacts Ui=30 V, Ii=20 mA, Pi=100 mWUi = 17.5 VDC (FISCO), or Ui=32 VDC, Ii=280 mA, Pi=2 W  Counter Module (non Ex):o Power Supply:Umax=30 VDC, Imax≤10 mA o Binary input: Reset counter reading Umax=30 VDCoNPN Outputs Umax=30 VDC, Imax=20 mAProtection class transmitter ES: IP20 (EN60529)ATEX and IECEx:Refer to Certificates and Approvals For electrical parameters refer to certificatesTechnical Information BGN Subject to change without prior notice.2024/01Special materials on requestIP65 IP47
