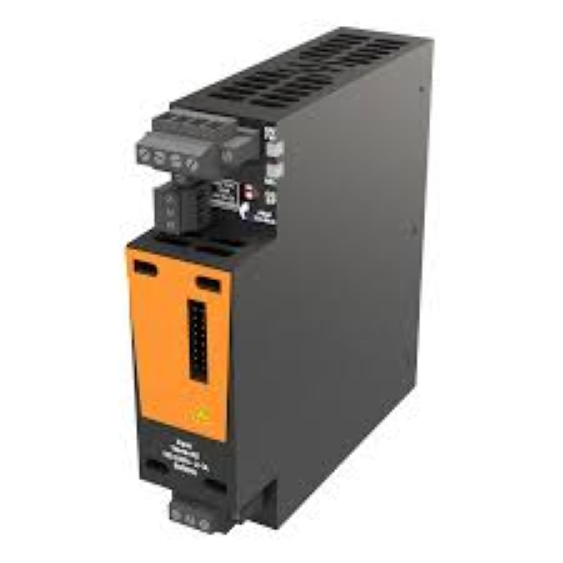

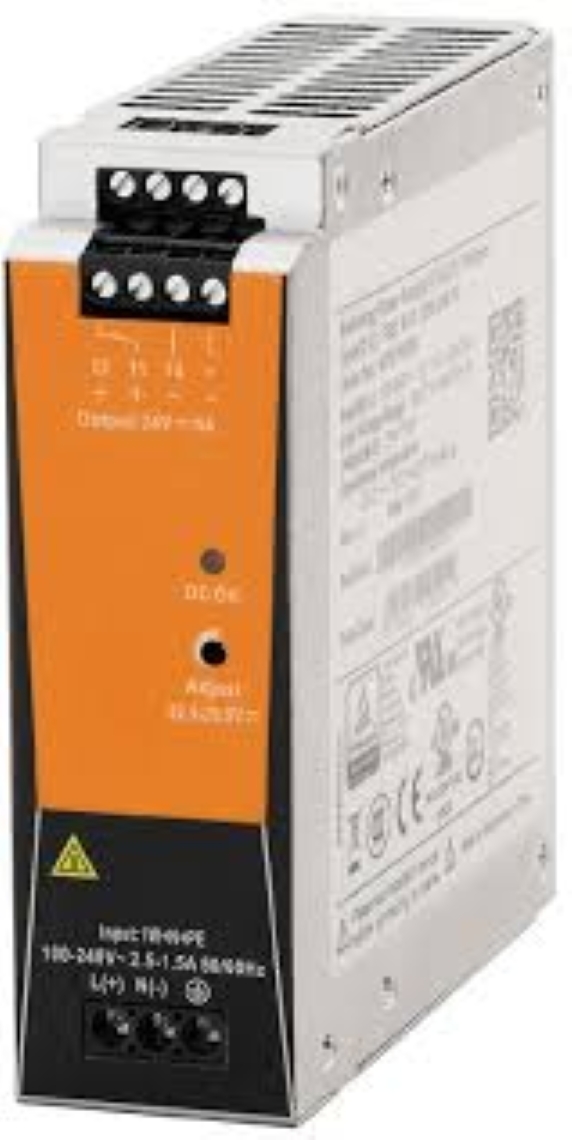

Meggitt VM600 ASPS Auxiliary Sensor Power Supply

SPECIFICATIONS (continued) Continuous output current (at 24 VDC )• At 45 °C (113 °F)• At 60 °C (140 °F): 6A : 5 A.• At 70 °C (158 °F) Parallel connection:Short-circuit protection Inverse-voltage protection Protection against reverse voltagesProtection against over-heating:::::Note: Output power derating is required above 60 °C (see Derating curve on page 3).3.75 A Yes, up to a maximum of five APF197 power supplies (see System overview on page 2)Yes Yes Yes Yes.Automatic shut off at over-temperature with automatic restart after cooling.Note: Output power derating is required above 60 °C (see Derating curve on page 3).Derating curve 130 120Load (%)110 100Note: Output power derating of 2.5 % / °C is required for operating temperatures above 60 °C (140 °F).90 80 70 60 50354045505560657075Temperature (°C)Environmental Temperature• Operating• Storage Humidity Protection rating (according to IEC 60529) MTBF (according to IEC 61709 (SN 29500) )Vibration (according to IEC 60068-2-6) Shock acceleration (according to IEC 60068-2-27)Document reference DS 264-237 Version 3 – 26.08.2019: −25 to 70 °C (−13 to 158 °F) : −40 to 85 °C (−40 to 185 °F) : 5 to 95 % RH (non-condensing): IP20 : > 500 000 hours : 2.3 g : 30 g (in all directions)DATA SHEET APF197 24 VDC 5 A power supply 3/6
